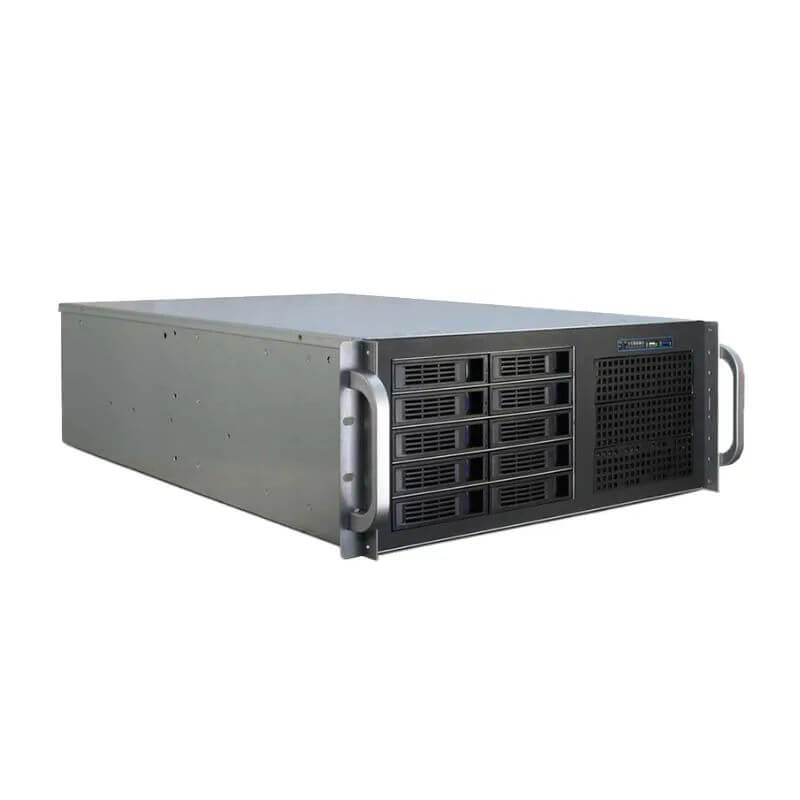

4U Server Chassis Model OCS4650-H10-F
4U Hot-swap chassis, Server Chassis, Server Case, Rackmount storage chassis
This is a hot-swap chassis that mounts 4U above the surface of the rack. The manufacturer states it is capable of accommodating different rackmount systems and solutions.
The case has two cold rear 80mm fans and three cold intercooler 120mm fans; thus, sufficient airflow is associated with cooling, and further heat injury is averted. The large body supports a maximum of 10 3.5-inch (5.25-inch) or 2.5-inch swappable HHD drives in addition to the three 5.25-inch external bays providing an expansion headroom.
Mostly preferred for structures such as medium to large data centers, this chassis incorporates provisions for a variety of motherboards, including EATX, CEB, ATX, Macro-ATX, and mini-ITX, especially for applications such as Software Defined Storage and Cloud Hosting Workloads.
Key Features:
- Comprises of not less than ten swappable HDDs of 3.5 inches (5.25 inches) in inches
- Additional three 5.25 external storage bay
- A total of seven PCI expansion cards of full-height
- CEB ATX Macro ATX E-ATX Mini ITX Motherboards Compatible
- Two 80 mm and three 120 mm middle cooling fans are attached.
- The structure is made of SGCC steel, making it extra strong.
- 2 USB 3.0 ports present
- Nonredundant ATX and MINI Power supply units (not provided) are supported.
Specification
| Model | OCS4650-H10-F | |
| Form Factor | 4U Rackmount Server Case with 10 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector | |
| Material | Metal material | SGCC |
| Metal thickness | 1.2mm | |
| Panel material | Metal | |
| Handle material | Metal | |
| M/B support | EEB (12″* 13″), microATX (9.6″* 9.6″), CEB (12″* 10.5″), ATX (12″* 9.6″), Mini-ITX (6.7″* 6.7″) | |
| Size | D* W* H(mm) | 650* 482* 176 |
| D* W* H(inch) | 25.5 * 19* 7 | |
| Drive Bay | 3.5 “or 2.5” external (hot-swap) | 10 |
| External 5.25″ bays | 3 | |
| Power Supply support | ATX power supply / mini redundant power supply | |
| Front panel | Control button | Power ON/OFF* 1, system reset* 1 |
| Indicator | Power ON/OFF* 1, HDD* 1, NETWORK* 3, Alarm* 1 | |
| Ports | USB 2.0* 1 , USB3.0* 1 | |
| Expansion | Riser Slot | 7pcs (full size) |
| Hot-swap Backplane | S-ATA or SAS backplane (12Gbit / s max) | |
| Middle | 3x 120mm PWM (hot-pluggable) | |
| Rear | 2x 80mm (standard) | |
| Net weight | 14.5kg | |
| Gross weight | 17kg | |
| Packing size | D* W* H(mm) | 830* 555* 240 |
| D* W* H(inch) | 32.7* 21.8* 9.4 | |
| Packing Material | Polyfoam with carton box | |
| Environment Temperature | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity | 5% to 95%, non-condensing |
