7U GPU Server Case Model OCG7900A-8H8-L
GPU Server Case, 10 GPU Mining Rig Case, 7U 8bay Hotswap
The OCG7900A-8H8-L GPU Server Case is a high-performance 7U rackmount chassis designed for AI, deep learning, and high-performance computing (HPC) workloads. Built to support up to 10 double-width GPUs, PCIe Gen5 connectivity, and efficient CRPS power supplies, this chassis offers exceptional expandability, cooling, and reliability for GPU-intensive environments.
Future-Ready GPU & Storage Capabilities
Support for 10 Double-Width GPUs
- Accommodates up to 10 double-width GPUs with 85mm spacing.
- Maximum GPU length: 360mm, ideal for RTX 4090 or similar high-power GPUs.
PCIe Gen5 Riser Options
- Choose between PCI-E-16X Gen5 Riser Cable or PCI-E-16X Gen5 Riser with MCIO Cable.
- Ensures high bandwidth and flexible layout for next-generation GPU performance.
Scalable Power Supply Support
- Supports CRPS redundant power configurations: 4+1, 3+2, 2+2, or 3+1.
- Delivers reliable power for mission-critical applications.
Robust Cooling System
- Front: 8×8038 fans for efficient airflow.
- Rear: 3×12038 fans, with optional 5×8038 fans for enhanced cooling under full GPU load.
Flexible Motherboard Compatibility
- Supports EEB, CEB, ATX, and MicroATX form factors.
- Compatible with Asrock ROME and GENOA server boards for versatile deployment.

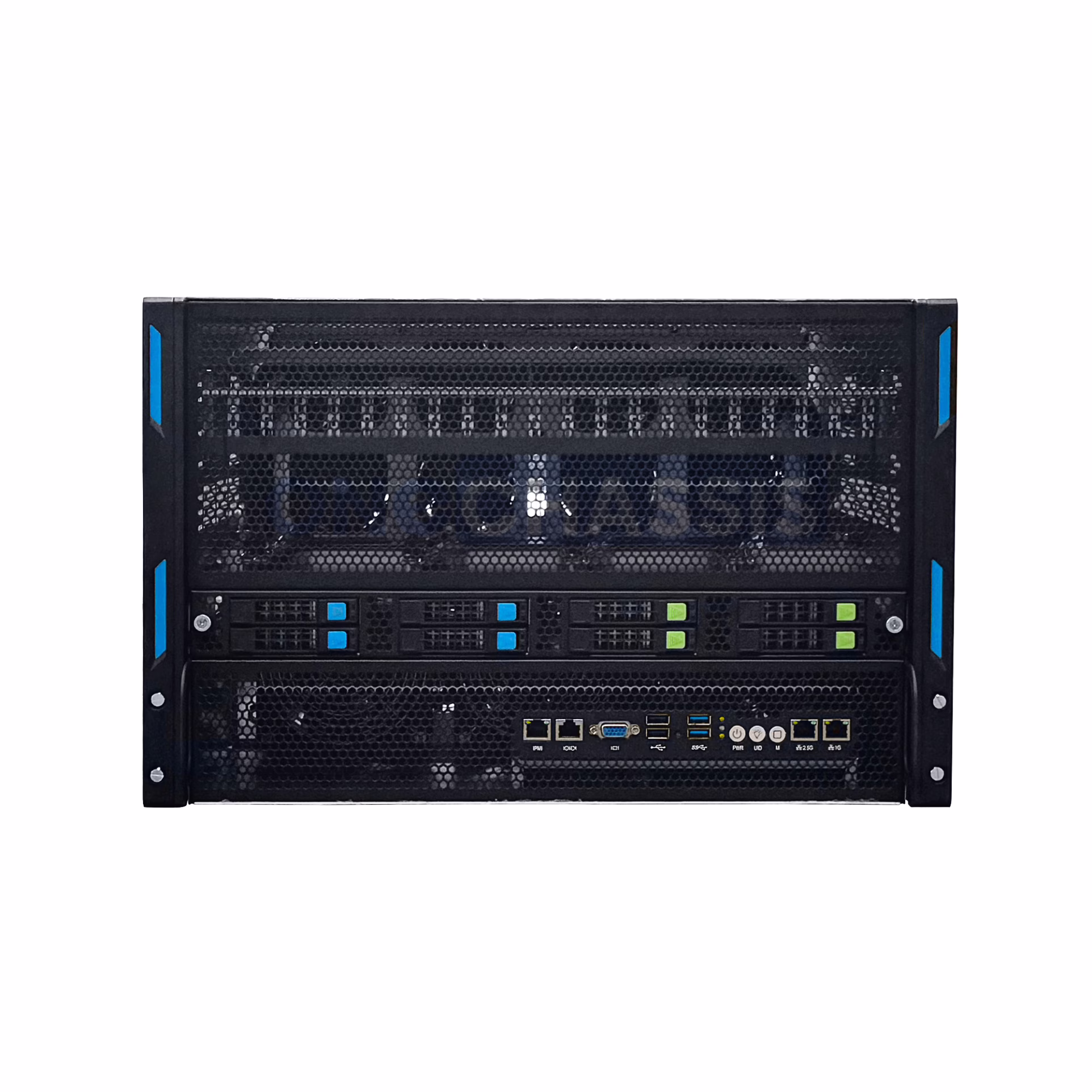

Storage & Front I/O
- 4× 2.5” SAS/SATA hot-plug or direct-plug drives for scalable storage.
- Front panel includes power/reset switches and dual USB 3.0 ports for easy access.
Specification
| Specification | |
| Product Model | OCG7900A-8H8-L |
| Product Name | 7U GPU Server Chassis |
| Dimension: | 900*447*308mm |
| Material: | SGCC1.0mm |
| SurfaceTreatment: | Front panel and mounting ears coated in black |
| Cooling Fan: | 3 hot-swappable 12038 fans, 8 hot-swappable 8056fans,supporting intelligent temperature control |
| CompatibleMotherboard: | ROME2D32GM-2T,GENOA2D24G-2L+,TURIN2D24G-2L+/500W,and SP2C741032G-2L+ motherboards |
| Maximum height for cooler: | 100mm |
| HDD Backplane: | NVMe backplane, compatible with U.2/SATA HDD/SSD |
| HDD Bay: | 8 hot-swappable 2.5″ HDD/SsD bays |
| Power supplySupport: | Supports 5 CRPS module, supports N+ N redundancy/N+ l redundancy |
| GPU slot : | 8×92mm or 10×85mm GPU spacing, up to 360mm length. |
| GPU Riser: | 8 Gen5 GPU risers and accompanying cables |
Applications:
- AI Model Training & Inference – Optimized for TensorFlow, PyTorch, and other deep learning frameworks.
- High-Performance GPU Computing – Ideal for scientific simulations and complex data processing.
- 3D Rendering & Virtual Production – Supports high-end rendering and virtual production workflows.
- Crypto Mining & Blockchain Infrastructure – Configurable for large-scale GPU mining operations.
The OCG7900A-8H8-L is a robust and scalable solution for industries requiring high GPU density, advanced cooling, and reliable power in a compact 7U form factor.
