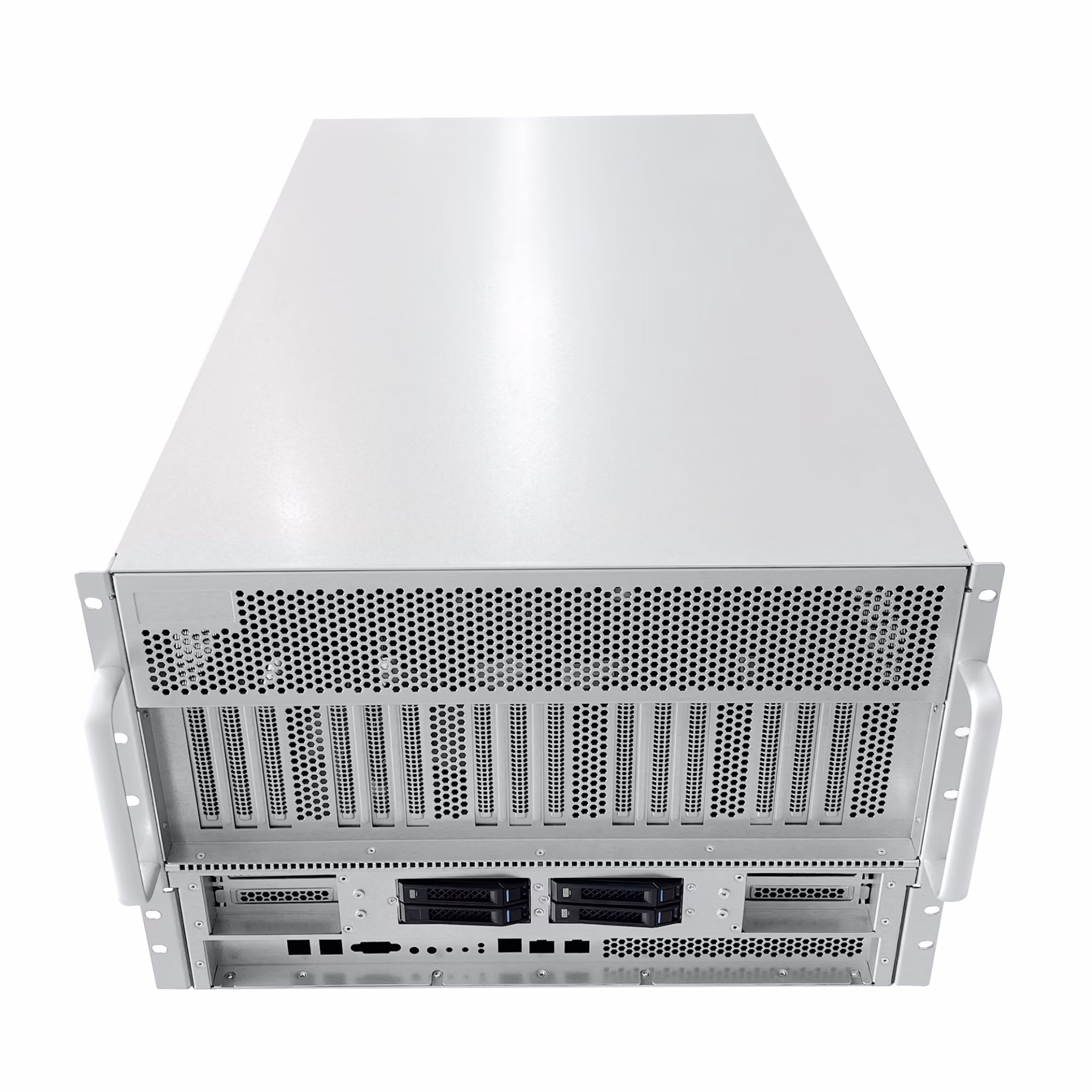

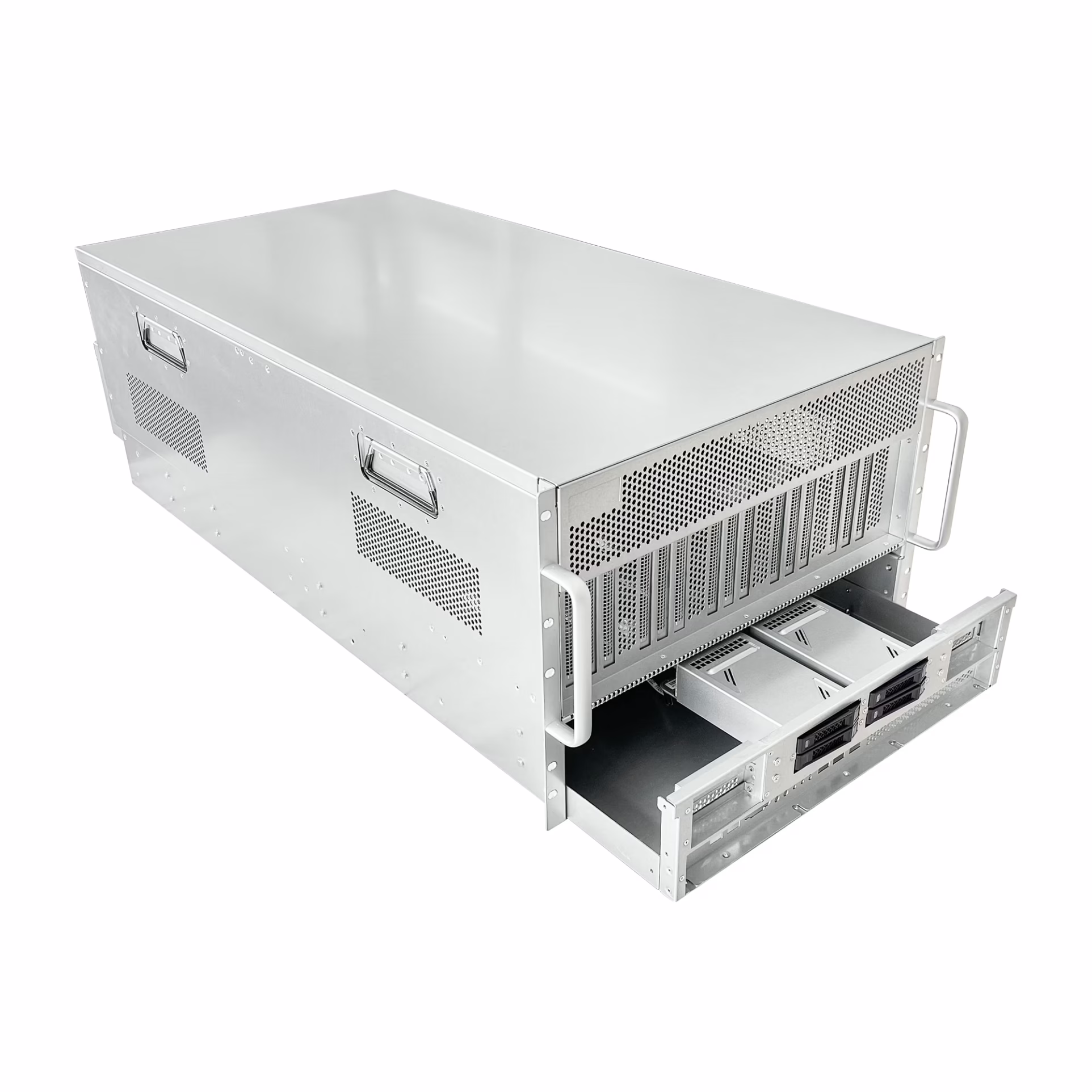

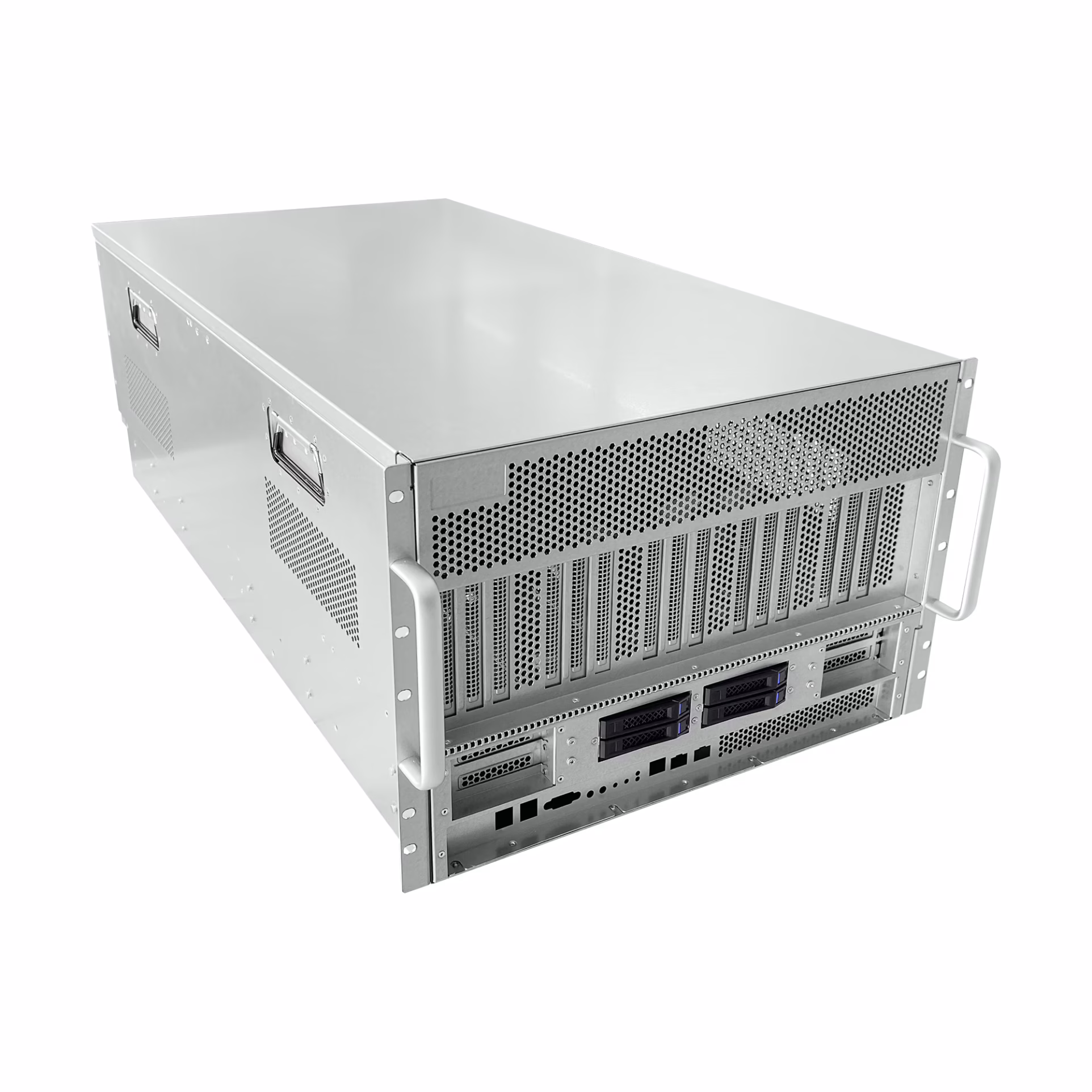

10U GPU Server Case Model OCG7870-10H4-R
GPU Server Case, 10 GPU Mining Rig Case, 10U 4bay Hotswap
The OCG7870-10H4-R GPU Server Case is engineered for unparalleled GPU performance, making it the ultimate solution for AI, deep learning, scientific computing, and rendering tasks. It features an advanced cooling system with 8×8038 center fans and 3×12038 rear fans, with an optional upgrade to 8×8056 center fans and 5×8038 rear fans for superior thermal management. The case also supports flexible PCIe Gen5 riser options, ensuring optimal GPU connectivity and performance.
Designed to accommodate EEB, CEB, ATX, and Micro ATX motherboards, including AsrockROME2D32GM-2T and AsrockGENOA2D24G-2L-R101 server boards, this 10U rack mount server offers exceptional versatility and scalability. With support for up to 10 NVIDIA RTX 4090 GPUs and high-density storage options, the OCG7870-10H4-R is built to handle the most demanding workloads with ease.
Key Features:
- Massive GPU Capacity – Supports up to 10 NVIDIA RTX 4090 GPUs for extreme parallel processing power.

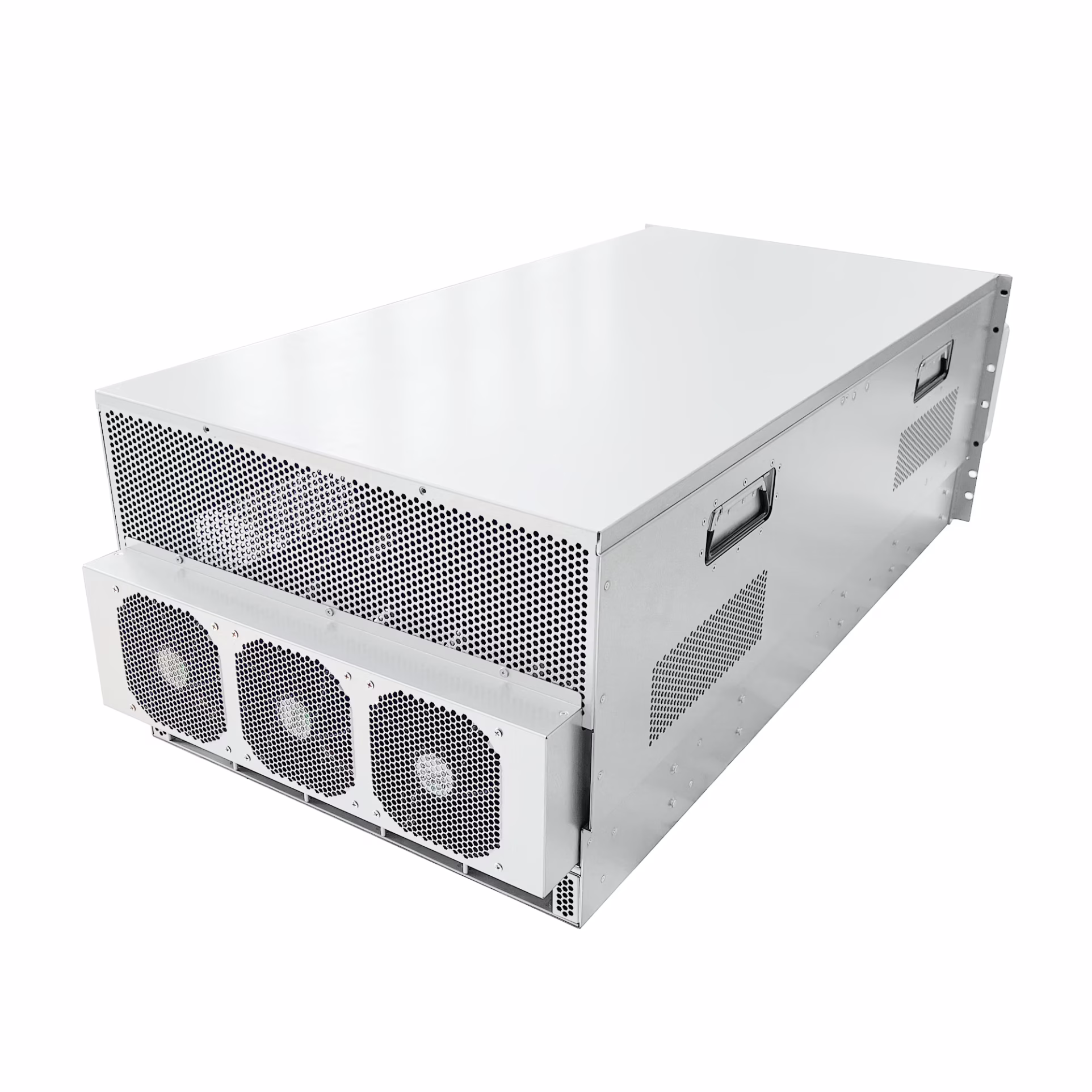

- Optimized Cooling System – Equipped with 8×8038 center fans and 3×12038 rear fans; optional configuration with 8×8056 center fans and 5×8038 rear fans for enhanced airflow.
- Versatile Motherboard Compatibility – Compatible with EEB, CEB, ATX, and Micro ATX form factors, including AsrockROME2D32GM-2T and AsrockGENOA2D24G-2L-R101 server boards.
- High-Density Storage Support – Front panel accommodates four 2.5-inch SAS/SATA direct-plug or hot-plug hard drives for flexible storage expansion.
- Redundant Power Supply Options – Supports CRPS redundant PSU configurations (4+1, 3+2, 2+2, 3+1) for maximum uptime and reliability.

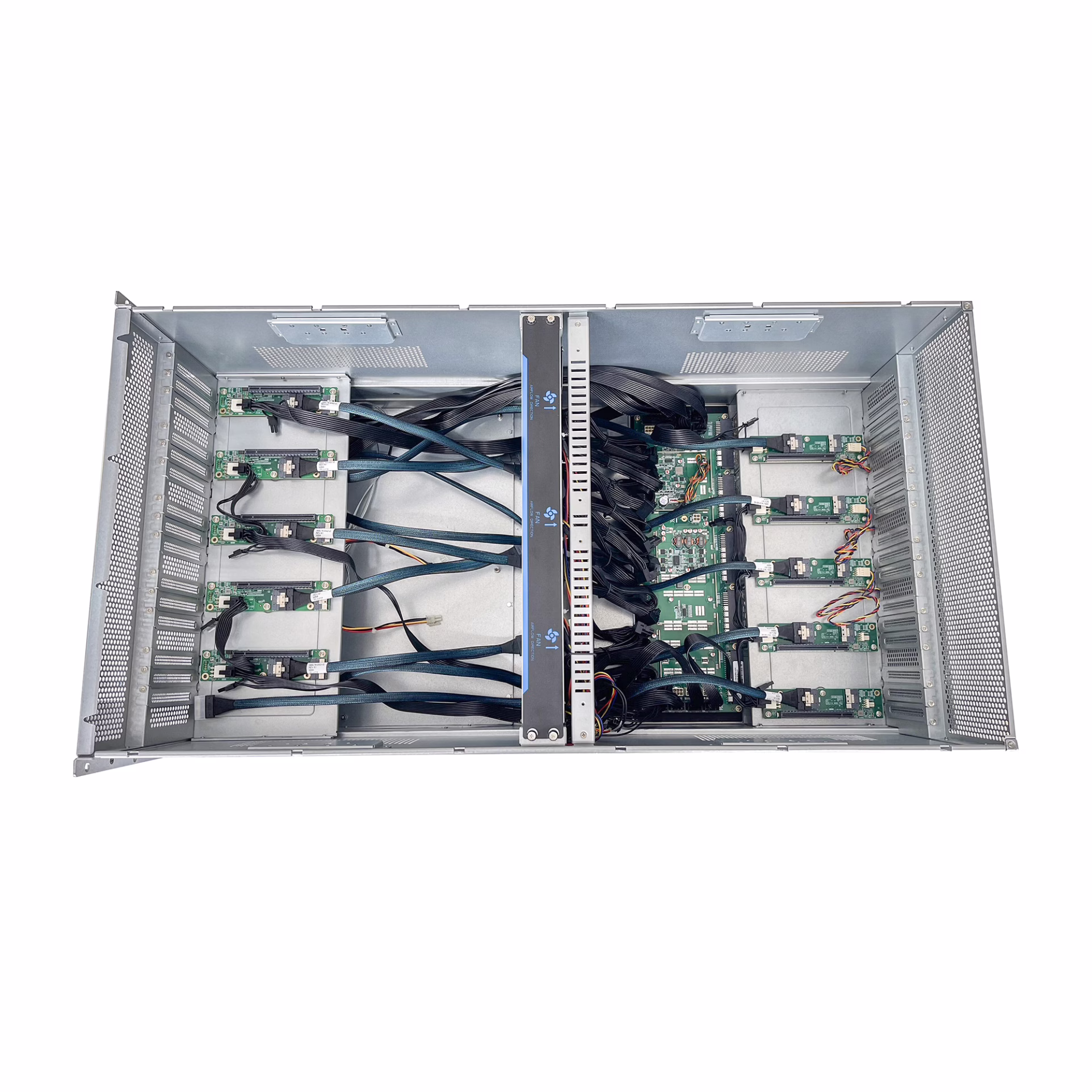

- Flexible PCIe Gen5 Riser Options – Choose between PCI-E-16X Gen5 Riser Cable or PCI-E-16X Gen5 Riser with MCIO Cable for optimal GPU connectivity.
- Durable Industrial-Grade Build – Constructed with Baosteel SGCC 1.0–1.2mm steel for strength and long-lasting performance.
- Tool-Free Access & Maintenance – Easy-to-use front panel with USB 3.0 ports, power/reset switches, and indicator lights for power, storage, and network status.
Specification
| Specification | |
| Product Model | OCG7870-10H4-R |
| Product Name | 10U GPU Server Chassis |
| Motherboard Support | AsrockROME2D32GM-2T/AsrockGENOA2D24G-2L-R101/ EEB(12″*13”)/ CEB(12″*10.5”)/ ATX(12″*9.5”)/ Micro ATX |
| Front hard drive | Supports 4* 2.5-inch SAS/SATA direct-plug or hot-plug hard disks |
| Power Supply Suppor | 4+1,3+2, 2+2, 3+1 CRPS redundant power supply |
| Cooling System | Standard Configuration: Center 8*8038, rear 3*12038 Fans, Optional Configuration: Center 8*8056, Rear 5*8038 fans |
| Front Panel Interface | Power Button Switch/ Reset Button Switch/ USB3.0*2 |
| Indicator Light | Power Indicator/ Hard Disk Indicator/ 2*Network Connection Indicator |
| GPU Support | Support 10-Card 4090 GameCard |
| Expansion Slot | Select either the PCI-E-16X Gen5 Riser Cable or the PCI-E-16X Gen5 Riser with MCIO Cable. |
| Guide Rail | Optional |
| Product Material | Baosteel SGCC1.0-1.2mm |
| Chassis Dimension | 870*435*308mm |
Application Fields:
- Artificial Intelligence & Deep Learning – Ideal for training and inference workloads requiring high GPU parallelism.
- High-Performance Computing (HPC) – Perfect for scientific simulations, engineering analysis, and large-scale data processing.
- 3D Rendering & Video Production – Supports professional rendering farms and high-end content creation workflows.
- Cloud Gaming & Virtualization – Capable of hosting multiple virtualized GPU instances for cloud-based gaming platforms.
- Blockchain & Cryptocurrency Mining – Configurable for large-scale GPU mining farms.
- Big Data Analytics – Suitable for real-time data analysis and large-scale data modeling.
- Research & Academic Labs – Used in universities and research centers for computational research and AI experiments.
