GPU Scaling vs Display Scaling in Server Systems: What Matters for Remote Workstations and Multi-Display Setups

Most scaling advice assumes one person, one PC, one monitor. That framing falls apart the moment you manage a fleet. In a server or workstation environment, an image often passes through several machines, protocols, and endpoints before it reaches a screen. A scaling choice that looks harmless on a single desk can produce blurry output, mismatched aspect ratios, and inconsistent behavior across dozens of users.

IT teams and hardware buyers rarely need to answer “GPU scaling or display scaling.” They need to answer something harder: where scaling should happen across the full display chain, and whether that decision survives contact with many endpoints, monitor models, and remote sessions.

Treat scaling as a layered decision rather than a two-way toggle. Definitions stay short here. The weight sits on deployment — consistency, manageability, latency, and support cost in server, remote workstation, and multi-display setups.

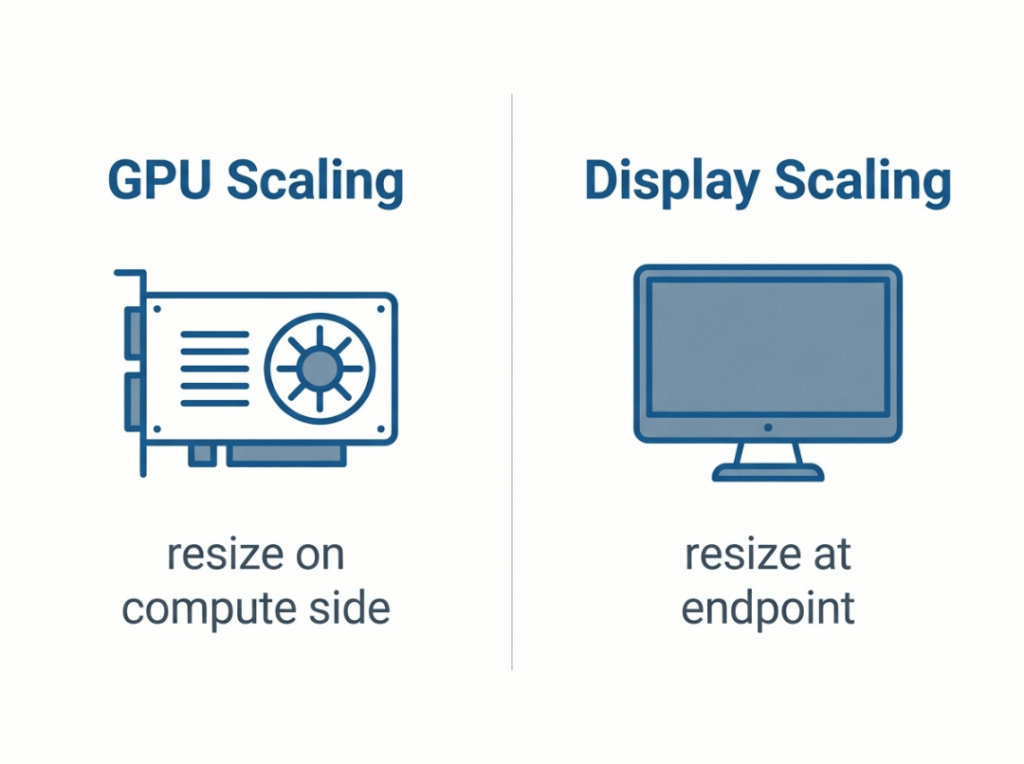

GPU Scaling vs Display Scaling: The Short Definition

GPU scaling resizes the image on the compute side before the signal ever leaves the machine. The graphics card takes the rendered frame, adjusts resolution and aspect ratio according to driver settings, then outputs a signal already sized for the target. Control sits on the hardware you administer.

Display scaling hands that job to the monitor. The endpoint receives the signal and resizes it internally using its own scaler, deciding for itself how the image fills the panel. Control sits at the edge, on hardware you often neither own nor standardize.

For enterprise buyers, that one distinction — compute-side control versus endpoint-side control — outweighs any argument about sharpness. Consumer coverage frames this around gaming, retro titles, and stretched resolutions, none of which touch the real fleet question: can you enforce, document, and support consistent output across many users? That question drives everything below.

Where Scaling Actually Happens in a Server or Workstation Display Chain

Most comparisons miss the part that matters. In a server environment, an image can be resized at several points between the application and the physical panel. Scaling is not one setting. It is a sequence of opportunities, and each one can help or hurt.

Grasp these layers and you avoid the two failures that dog every fleet. The first is stacked scaling, where the same image gets resized more than once and turns soft. The second is inconsistent output, where different users pull different results from identical source content.

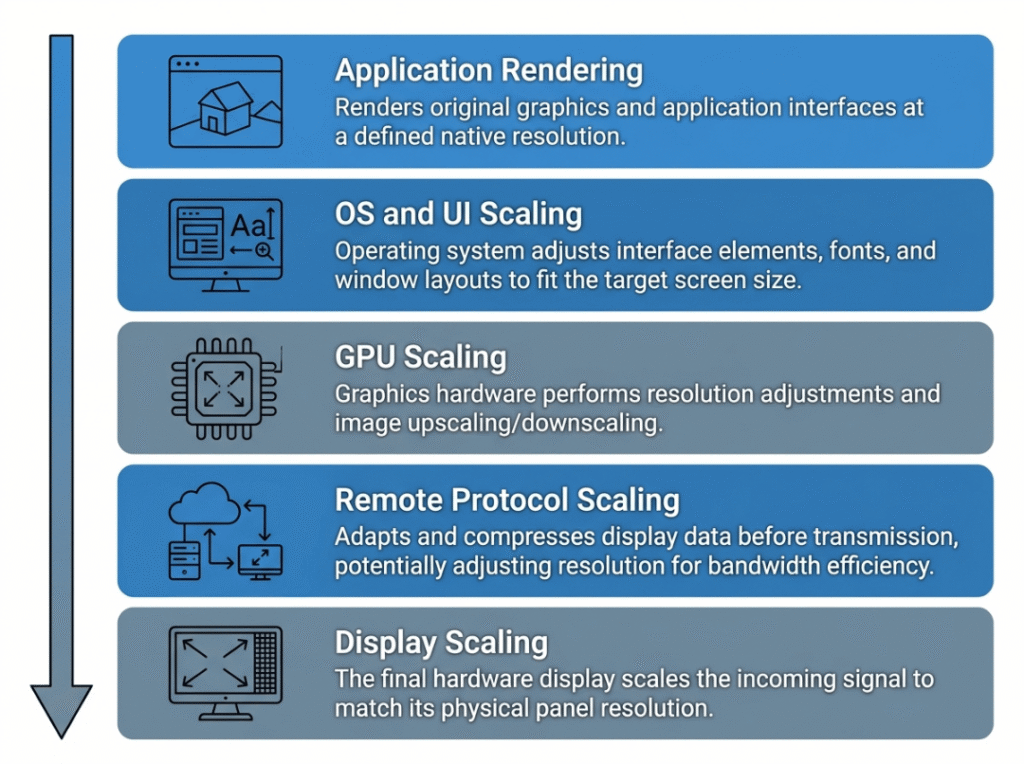

A frame can pass through as many as five layers:

Application-Layer Rendering Scaling

CAD, visualization, and imaging applications render at a chosen resolution and often apply their own DPI or scaling logic. Start here for good reason. Set the correct render resolution and DPI inside the application, and you frequently erase any need to correct scaling downstream. Fixing the problem at the source beats patching it at the panel every time.

OS and UI Scaling

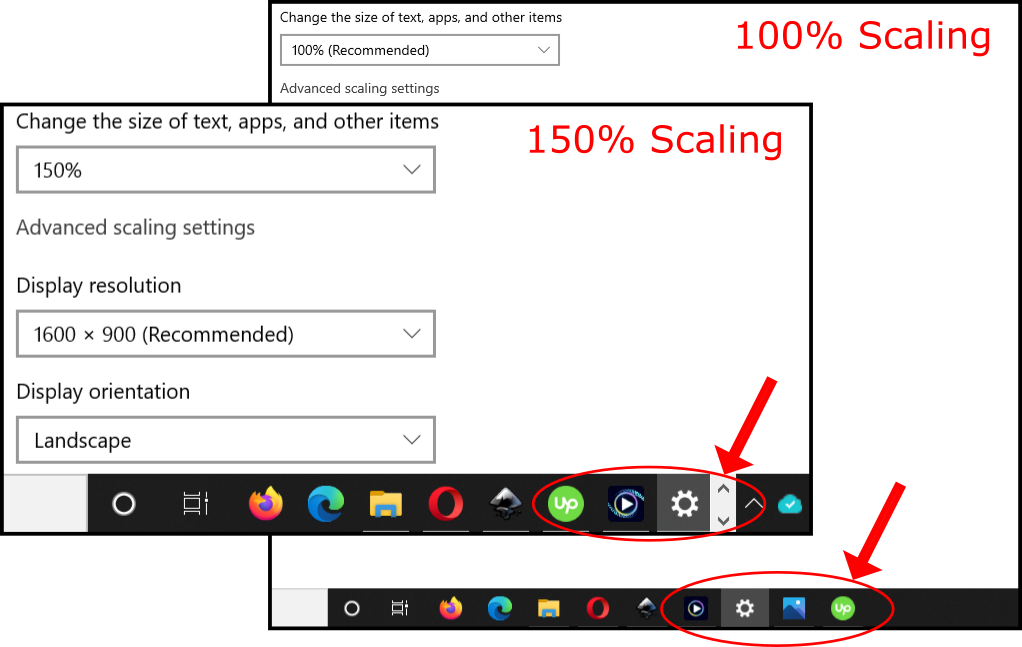

Windows and Linux apply display scaling and DPI settings that change the size of text and interface elements. This is a separate job from resizing the rendered image. Trouble starts when OS scaling fights GPU or display scaling inside a remote session — interface elements render at one factor while the viewport renders at another. Users report that “everything looks slightly wrong” and can never quite say why.

GPU-Layer Scaling

The graphics driver on the server or workstation resizes the output before the signal leaves the machine or gets encoded for remote delivery. For administrators, no other layer offers this much centralized control. Set it once through driver policy and a standard system image, and every machine behaves the same no matter which monitor eventually connects.

Remote Protocol Scaling

This layer belongs to remote deployments alone, and it hides the majority of scaling headaches. VDI platforms, remote workstation protocols, and KVM-over-IP appliances can resize or re-encode the image between host and client. When a remote session looks soft or the aspect ratio drifts, the protocol layer is usually the culprit, not the GPU or the panel — yet teams almost always blame the hardware first. Check it before anything else when a remote session looks wrong but a local one does not.

Display-Layer Scaling

The final resize happens inside the physical monitor at the endpoint. On a single qualified display, the result is predictable. Across a mixed fleet of monitor models, docks, and remote clients, this becomes the layer you can least control. Each panel scales to its own internal logic, and you inherit whatever behavior the hardware shipped with.

Why the Scaling Choice Matters More in Server and Remote Environments

A single desktop only has to satisfy one person looking at one screen. A server or workstation fleet has to deliver consistent, predictable output to many endpoints, often over remote connections, to users who log in from different seats on different days. That shift in scale rewrites the priorities.

• Consistency across endpoints. Varied monitors and resolutions turn endpoint-owned scaling into variation you cannot govern. The same CAD viewport looks correct at one seat and stretched at the next. Compute-side control eliminates that variable outright.
• Manageability. Centralized scaling is something you can standardize, document, and reproduce. Per-monitor scaling scatters the “configuration” across dozens of on-screen menus you never touch. One is a policy. The other is a support ticket already forming.
• Latency in remote sessions. Every resize step costs something. In a remote workstation session where users pan, rotate, and manipulate 3D models, each extra scaling operation between host and client drags on work that lives or dies by responsiveness. Fewer resize steps in the chain buy a tighter interactive feel.
• Support cost. Consumer coverage ignores this one entirely, and it often decides the deployment. A configuration that runs slightly less crisp but stays identical across 200 seats beats a sharper one that behaves differently at every desk. Predictability and a low support burden usually win the business case, not pixel-level sharpness.

When GPU Scaling Is the Better Choice for Server and Workstation Setups

Whenever control and consistency lead the requirements, GPU scaling is the sensible default. Handling the resize on the compute side keeps behavior uniform and administrable.

Centralized Control Across Many Machines

Put scaling on the graphics driver and you can enforce it through driver policy and a standard system image. Every workstation in the fleet follows the same output rules, and you never depend on whether a given monitor’s menu happens to be set correctly. For teams supporting hundreds of machines, that reason alone settles it.

Mixed or Unknown Endpoint Monitors

One question usually decides this: do you control the monitors? When users connect varied displays, docks, or personal screens through remote access, GPU scaling delivers far more predictable results than trusting each unknown panel’s internal scaler. BYOD-style remote workstation access makes the point sharper still, since the endpoint sits genuinely outside your reach.

Legacy Applications and Fixed Aspect Ratios

Engineering, industrial, and older enterprise applications frequently run at non-native or fixed-aspect resolutions. GPU scaling holds the proportions and adds controlled letterboxing, rather than leaving a random monitor scaler to stretch the image into something wrong. When a legacy control application has to look correct on modern panels, compute-side handling is the dependable path.

Predictable Behavior Across Remote Sessions

Compute-side scaling keeps the delivered image consistent no matter which endpoint a user signs in from. Roaming users and shared workstation pools feel this most. Someone who moves between seats sees the same result each time, because the resize decision travels with the host rather than the desk.

When Display Scaling Still Makes Sense

Display scaling is not a mistake. Under specific, well-defined conditions it is the simpler and equally valid choice, and forcing GPU scaling everywhere only over-engineers setups that never needed it.

High-Quality, Fixed Local Monitors

A seat built around a known, standardized monitor with a strong internal scaler can let the display own the resize and still produce clean output with almost no setup. This suits dedicated positions where the hardware gets qualified once and rarely changes. Control the exact monitor model, confirm it scales well, and the endpoint becomes a reasonable place to handle it.

Dedicated Operator Consoles and Appliance-Like Stations

Control-room seats, medical imaging stations, and fixed operator terminals get qualified as a complete unit, then left alone. In these appliance-like deployments, a known-good monitor handling scaling keeps the configuration simple and removes a variable from the host. The display was validated for the role, so trusting it holds up.

Simple Single-Display Deployments

One user, one machine, one monitor — display scaling is often the low-effort option here. The extra control of GPU scaling carries configuration overhead a single fixed seat may not justify. This holds only while the deployment stays genuinely small and static. The moment it grows into a fleet or gains remote access, the calculus swings back toward compute-side control.

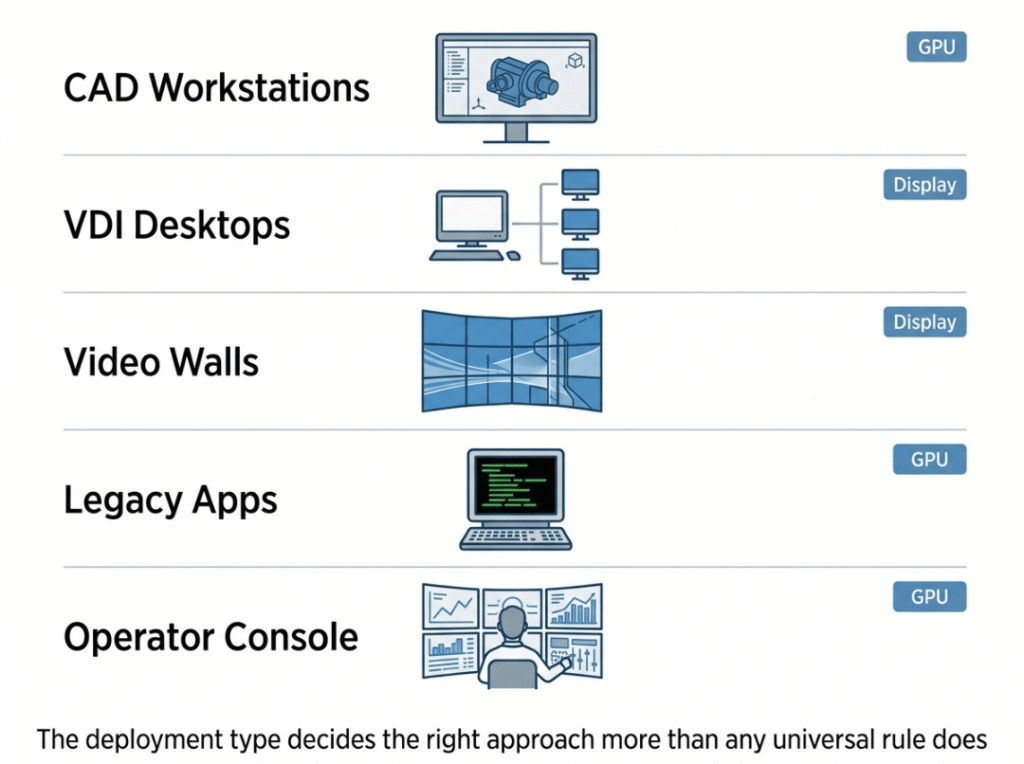

GPU Scaling vs Display Scaling by Use Case

The deployment type decides the right approach more than any universal rule does. The table anchors the call, and the sections below carry the reasoning.

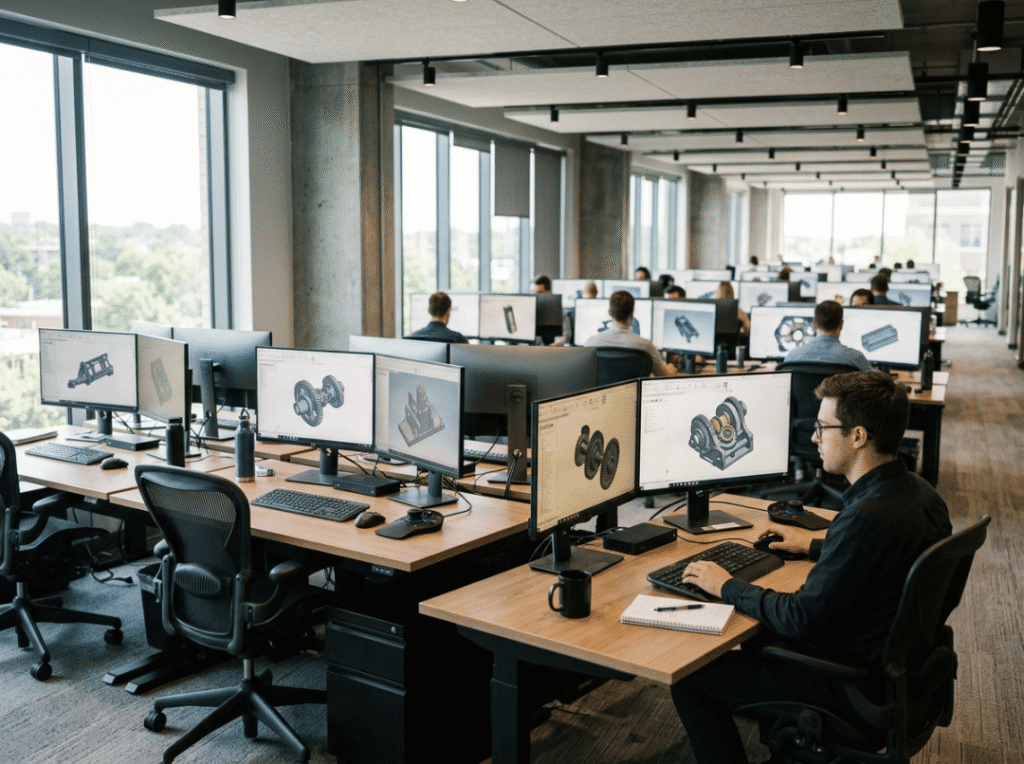

CAD and 3D Visualization Workstations

These environments demand accurate aspect ratios and a clean, consistent viewport, usually across a mix of monitors. Compute-side control delivers exactly that, and it pairs naturally with the high-VRAM GPUs these workstations already run for heavy viewport work. A designer rotating a large assembly should see identical proportions whether they sit at their own desk or connect from across the building.

VDI and Office Desktops

Across large user pools, the GPU layer and the remote protocol layer carry more weight than endpoint scaling. Standardize the resize on the compute and delivery side, and thousands of sessions stay consistent while the support load from per-monitor behavior never materializes. At this scale, manageability decides it — pixel-level sharpness does not.

Control Rooms and Video Walls

Tiled and aligned displays live or die on precise, uniform output. Let each panel apply its own scaling and proportions drift until the wall stops reading as a single surface. Centralized, compute-side scaling kills per-panel variation and holds the composite image coherent across every tile.

Legacy Enterprise Applications

Older industrial and business software often runs at non-standard resolutions with fixed aspect ratios. GPU-side control keeps these applications usable and correctly proportioned on modern panels, instead of surrendering them to a monitor scaler that stretches them into something unreadable. When the software cannot change, the display chain has to adapt around it.

Common Enterprise Scaling Mistakes

The same handful of missteps cause most scaling problems in fleets. Each one becomes avoidable once you think in layers.

• Stacking scaling at multiple layers. The application, the GPU, the protocol, and the monitor each resize the same image, and the output turns soft and unpredictable. Only one layer should own the resize.
• Letting every endpoint decide its own scaling. In a fleet that needs consistency, per-monitor scaling guarantees variation. Identical source content lands differently on every desk.
• Ignoring the remote protocol layer. A VDI or KVM-over-IP setting quietly re-encodes and resizes the session while the team blames the GPU or the monitor for latency and blur. In remote setups, this layer earns the first look, not the last.
• Confusing OS/UI scaling with image scaling. DPI settings for text and interface size are a different animal from resizing the rendered viewport. Treat them as one setting and the interface and workspace end up disagreeing with each other.
• Standardizing without testing the real mix. Lock in one approach without validating it against the actual applications and monitor models in use, and you ship a policy that works in theory and fails on the floor.

How to Test Scaling Options Before Rollout

Never standardize a scaling policy off a spec sheet. Validate it against the deployment you actually run.

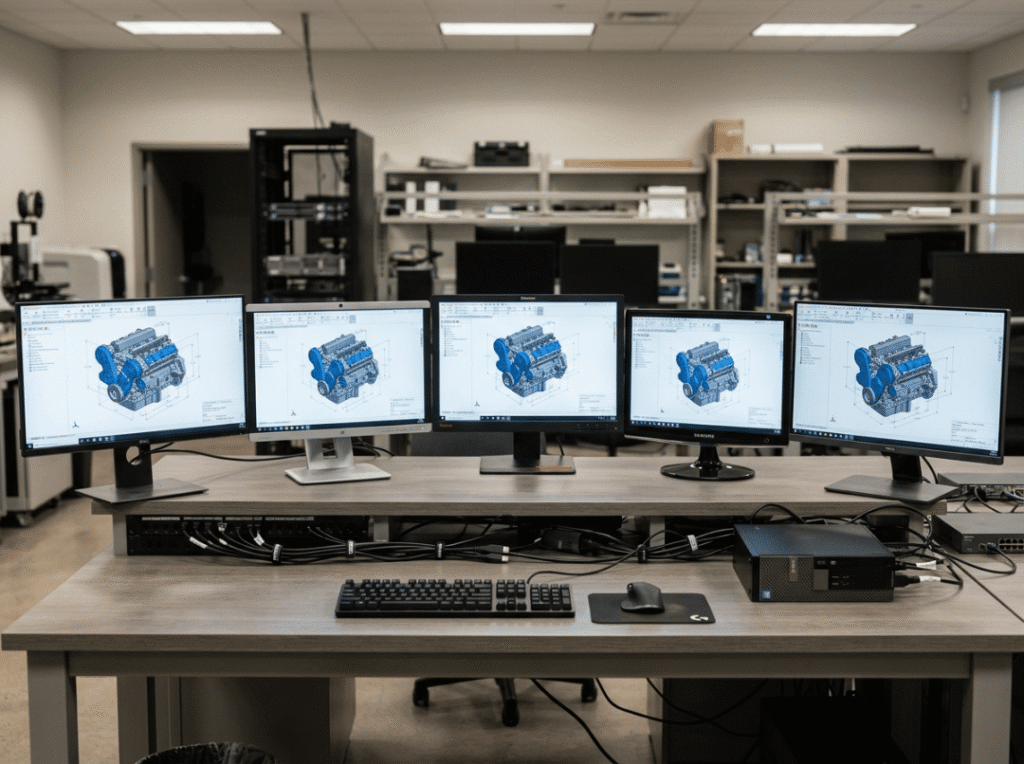

1. Build a representative test bench. Mirror the real fleet — the same GPU models, the same remote protocols, and a genuine sample of the endpoint monitors users will connect. A bench that ignores production teaches you almost nothing.
2. Test one layer at a time. Enable scaling at a single layer, read the result, then move on. Isolating layers is the only reliable way to find where scaling belongs and to catch stacked resizing before it ships.
3. Compare what users actually care about. Measure aspect ratio accuracy, sharpness, and interactive latency inside the real applications — CAD viewports, imaging tools, line-of-business software — not synthetic demos that never behave like production work.
4. Validate across the mix. Confirm behavior on different monitor models and through the remote clients users depend on. A configuration that looks right on one panel has to survive the whole fleet before it earns the “standard” label.
5. Document the chosen configuration as policy. Record the settings, the layer that owns the resize, and the reasoning behind both. A documented standard deploys through system images and supports consistently — which was the entire point of choosing compute-side control in the first place.

Frequently Asked Questions

What is the difference between GPU scaling and display scaling in a server environment?

GPU scaling resizes the image on the compute side, inside the graphics driver, before the signal leaves the host or gets encoded for remote delivery. Display scaling resizes at the endpoint, inside the monitor. In a server environment, the difference comes down to ownership: GPU scaling gives you centralized, administrable control, while display scaling hands the decision to endpoint hardware you may never standardize.

Where should scaling happen for remote workstations and VDI setups?

Keep the resize on the compute side and watch the remote protocol layer closely. GPU-side scaling standardizes output across sessions, and clean protocol configuration prevents an unwanted second resize between host and client. Minimize endpoint scaling so behavior stays consistent regardless of which client a user connects from.

Which scaling method is better for multi-display or video wall deployments?

Centralized, compute-side scaling. Video walls and tiled displays depend on uniform proportions across every panel, and per-monitor scaling drifts the composite image out of alignment. Handle the resize centrally and every panel stays consistent, preserving the wall as a single coherent surface.

Does GPU scaling add noticeable latency in remote workstation sessions?

The GPU resize itself is lightweight on modern hardware. The latency risk comes from stacking resize steps — application, GPU, protocol, and monitor all acting on the same frame. Keeping the resize on one layer and configuring the protocol cleanly matters far more for interactive latency than the GPU scaling operation on its own.

How do I keep image output consistent across a mixed fleet of monitors?

Move the scaling decision off the endpoints. Own the resize on the GPU or delivery side, enforce it through driver policy and standard images, and the mix of monitor models stops mattering, because each display receives a signal already sized correctly. Endpoint-owned scaling is what introduces the variation to begin with.

Should I disable display scaling if I standardize on GPU scaling?

In most fleet deployments, yes — or at minimum set endpoints to a neutral, pass-through behavior so they do not re-resize an image the GPU already handled. Aim for a single resize owned by one layer. Leaving display scaling active on top of GPU scaling is the classic stacking mistake that softens output.

Conclusion

Scaling in server systems is a layered decision, never a simple GPU-versus-monitor toggle. An image can be resized at the application, the operating system, the graphics driver, the remote protocol, and the panel. The job of a sound deployment is to make exactly one of those layers own the resize, chosen deliberately for the environment.

For most server and workstation fleets, consistency, manageability, and predictable output point to compute-side control. Display scaling holds its place on fixed, qualified single-display seats where the hardware never changes. Ownership draws the line: the more endpoints, remote sessions, and monitor variation you manage, the harder the decision tilts toward the GPU and delivery layers. Whatever you settle on, prove it against your real applications and monitor mix before you lock it in.
