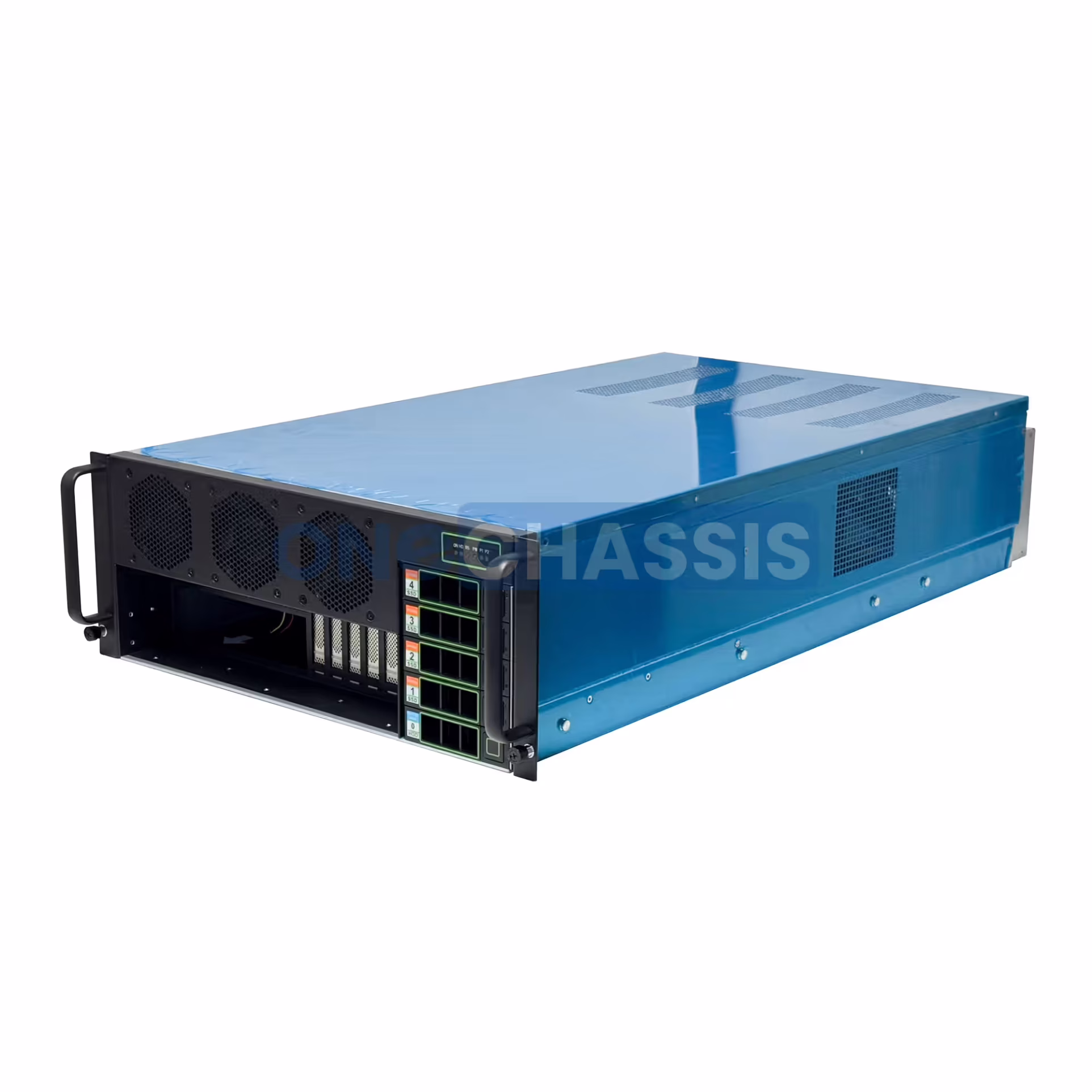

4U GPU Server Case Model OCG4780-4H5-H
High-Performance 4U GPU Server for AI and HPC
The OCG4780-4H5-H is a cutting-edge 4U rack-mount GPU server designed for demanding applications, including AI training, deep learning, big data analytics, and high-performance computing (HPC).
Key Features:

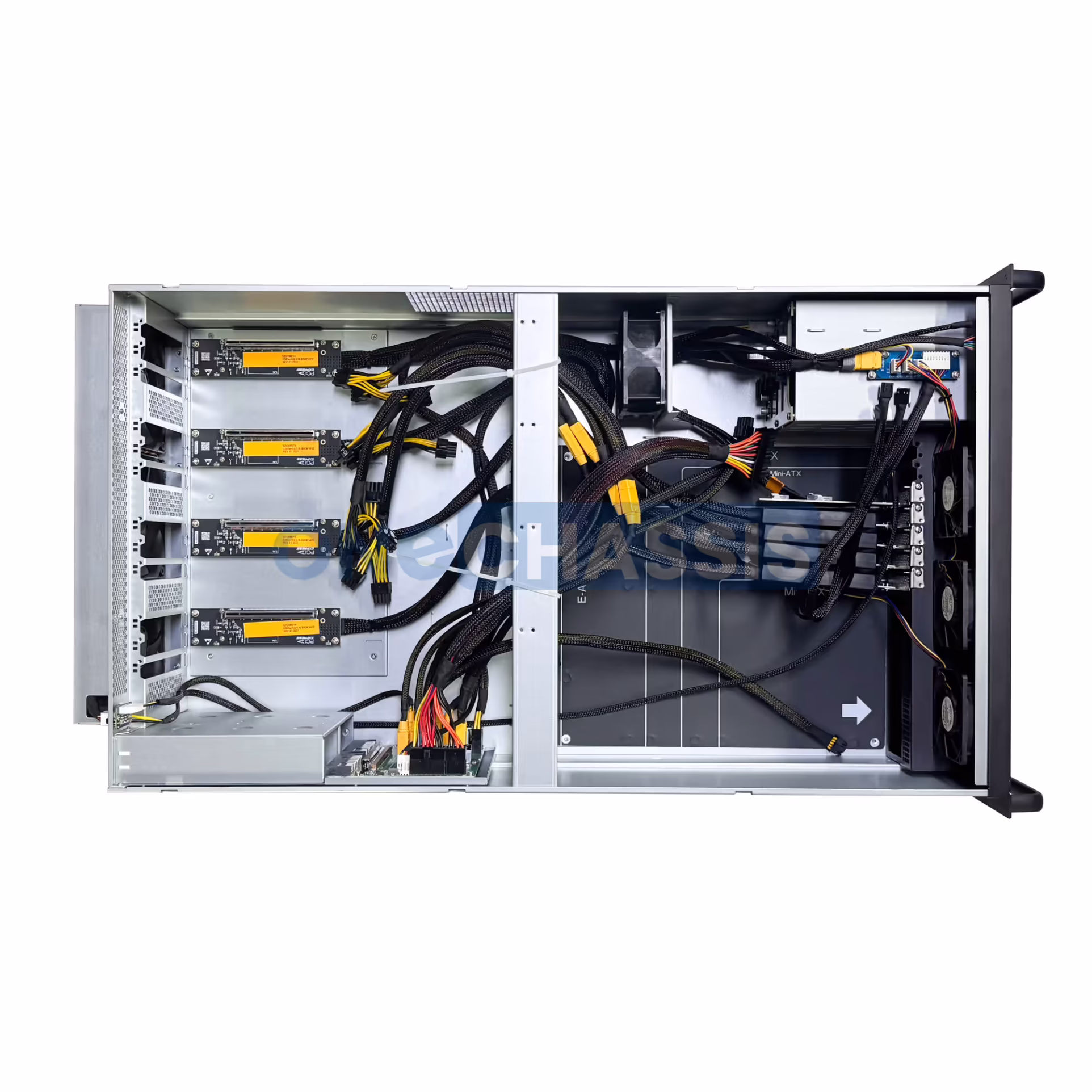

- Unmatched GPU Power: Accommodates up to four full-length RTX 4090/5090 GPUs with 90mm spacing, delivering exceptional parallel processing capabilities.
- Reliable 24/7 Operation: Dual CRPS 3200W redundant power modules with 1+1 redundancy ensure uninterrupted performance.

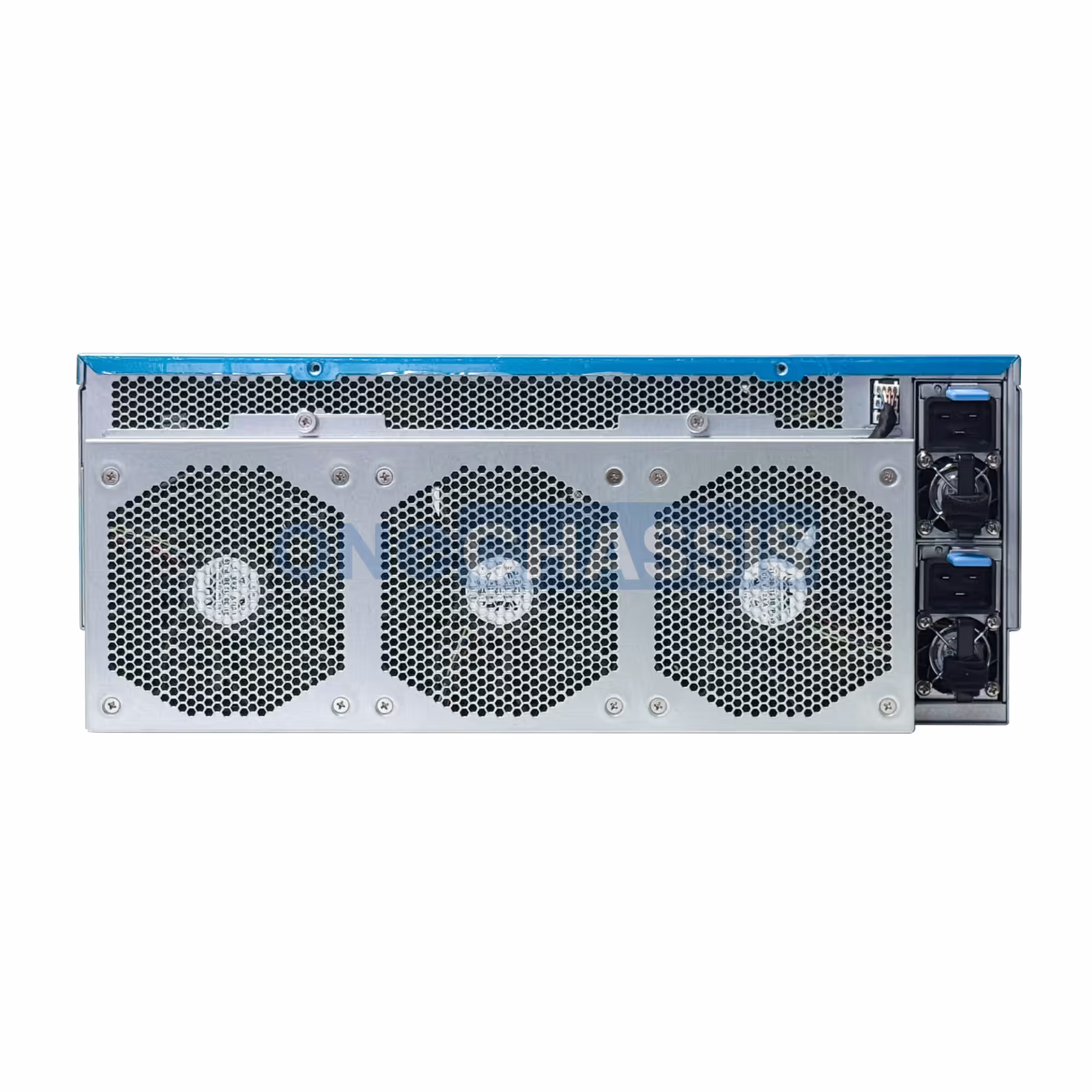

- Advanced Cooling System: Features 3 front 8038 fans and 3 rear 12038 fans, all managed by the BMC for optimal thermal management under heavy GPU workloads.

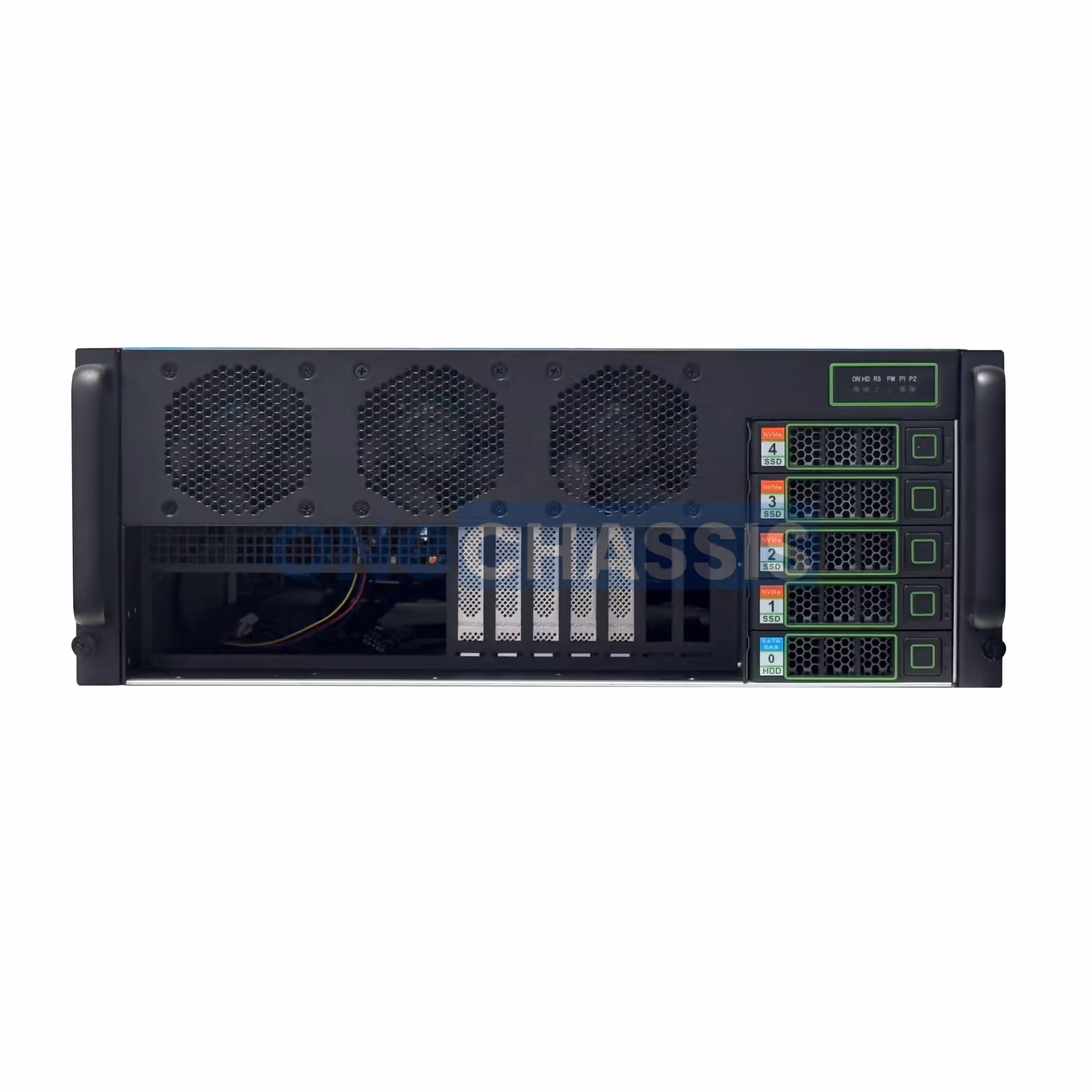

- Flexible Storage Options: Supports up to 5 hot-swappable 3.5-inch drives, including a mix of SATA and U.2 hard drives.
- Simplified Maintenance: Front-access motherboard I/O ports and optional 2U tool-free slide rails make servicing and rack installation effortless.
Designed for enterprises, research institutions, and data centers, the OCG4780-4H5-H offers unparalleled scalability, reliability, and efficiency for next-generation GPU acceleration.
Detail Images
Specification
| Model | OCG4780-4H5-H GPU Server |
| Dimensions | 780* 436* 177mm |
| Form Factor | 4U rackmount |
| Carton Size | 1010* 600* 310mm |
| Net Weight | 21.3kg |
| Cross Weight | 23.1kg |
| M/B Form Factor | Supports ATX and EATX EPYC and Xeon motherboards |
| Storage Configuration | Supports five 3.5-inch hot-swappable hard drives, including a mix of SATA and U2 hard drives |
| Power Configuration | Supports two CRPS3200w redundant power modules, with 1+1 redundancy and a peak power output of 4000w |
| System Cooling Fans | Three front 8038 fans and three rear 12038 fans, controlled by the BMC |
| GPU Configuration | Supports four 355x70mm RTX4090/5090 graphics cards, with 90mm spacing |
| Data and Power Cables | Configuration based on the customer’s selected motherboard and graphics card models |
| Other Features | Front-access motherboard I/O port for easy maintenance |
| Slide Guides | 2U Tool-free rail(optional) |
