Understanding your server’s RTX graphics card requirements is crucial to achieving excellent performance in engineering duties and intricate simulations. This article examines all the elements relevant to a Solidworks-specific graphics card, such as CUDA core count, VRAM size, compatibility, overall power, and engineering benchmarks for specific Nvidia RTX models and their price/work efficiency ratios for professional CAD tasks. The article provides strategies for choosing the most effective graphics card for the server based on its factors, ensuring maximum output from your team.
What are the System Requirements for Solidworks in 2025?
To ensure optimal performance when running Solidworks 2025, it is critical to meet or exceed the following system requirements:
Minimum Requirements:
- Operating System: Windows 10 or higher (64-bit)
- Processor: 3.3 GHz or higher quad-core CPU
- Memory: 16 GB RAM
- Graphics: GPU with at least 4 GB VRAM and certified drivers (e.g., NVIDIA Quadro or AMD Radeon Pro)
- Storage: SSD with 20 GB of free space
- Display: 1920×1080 resolution or higher
Recommended Requirements:
- Operating System: Windows 11 (64-bit)
- Processor: 3.6 GHz or higher multi-core CPU (e.g., Intel i7 or AMD Ryzen 7)
- Memory: 32 GB RAM or more
- Graphics: NVIDIA RTX series with 8 GB VRAM or higher, or AMD equivalent, with certified drivers
- Storage: NVMe SSD with 50 GB of free space
- Display: 4K resolution support for enhanced visuals
Updating your GPU drivers and Solidworks software for compatibility and peak performance is also advisable. These specifications ensure robust performance, especially when handling large assemblies and complex simulations.
Understanding the Minimum Hardware Certification
To begin with, I check that my processor is at least a quad-core 3.3GHz so that my system operates seamlessly during modeling processes. Sometimes, processors alone are insufficient, and additional components such as the Nvidia RTX series graphics card with 8GB VRAM or AMD GPUs do the job for rendering and simulation purposes. Last, I also use NVMe SSDs with at least 50GB of free space to improve data handling and access times. Setting these boundaries guarantees meeting the certification requirements and remarkably enhances the experience for the user.
Recommendations for Graphics Cards for Solidworks
For optimal performance in SolidWorks, selecting a professional-grade GPU is crucial as it must handle demanding 3D modeling and rendering tasks effectively. Below are the most recommended graphics cards for SolidWorks, based on specifications and expert consensus:
- NVIDIA Quadro RTX Series
Professional GPUs like the NVIDIA Quadro RTX 4000, RTX 5000, or higher models are tailored for CAD applications like SolidWorks. These cards feature advanced ray tracing capabilities, robust memory capacity, and certified drivers optimized for SolidWorks workflows.
-
-
- Graphics Memory (VRAM): 8 GB or higher (GDDR6)
- CUDA Cores: 2,304 (RTX 4000) to 3,072 (RTX 5000), supporting high computing performance
- DirectX/OpenGL Support: Fully compliant for CAD applications
-
- AMD Radeon Pro W-Series
AMD’s Radeon Pro W6600 and W6800 are popular choices among SolidWorks professionals. These cards are certified for SolidWorks, ensuring compatibility and stability in professional environments.
-
-
- Graphics Memory (VRAM): 8 GB (W6600) to 32 GB (W6800)
- Stream Processors: 1,792 (W6600) to 3,840 (W6800)
- DirectX/OpenGL Support: Advanced driver support for CAD use cases
-
- NVIDIA GeForce RTX Series (High-End Consumer Grade)
While GeForce RTX cards are primarily designed for gaming, higher-end models like RTX 3080 and RTX 3090 offer impressive performance for SolidWorks, particularly for smaller-scale projects or hobbyists.
-
-
- Graphics Memory (VRAM): 10 GB (RTX 3080) to 24 GB (RTX 3090)
- CUDA Cores: 8,704 (RTX 3080) to 10,496 (RTX 3090)
- DirectX/OpenGL Support: Compatible but without certified drivers, which may introduce minor reliability concerns
-
When selecting a graphics card for SolidWorks, it is vital to prioritize certified hardware for a stable and efficient workflow, especially in professional settings. For budget-conscious users, consumer-grade GPUs may suffice but may not guarantee the same level of compatibility or driver stability as professional-grade alternatives. Adjusting settings within SolidWorks to optimize GPU usage is also recommended to leverage hardware capabilities fully.

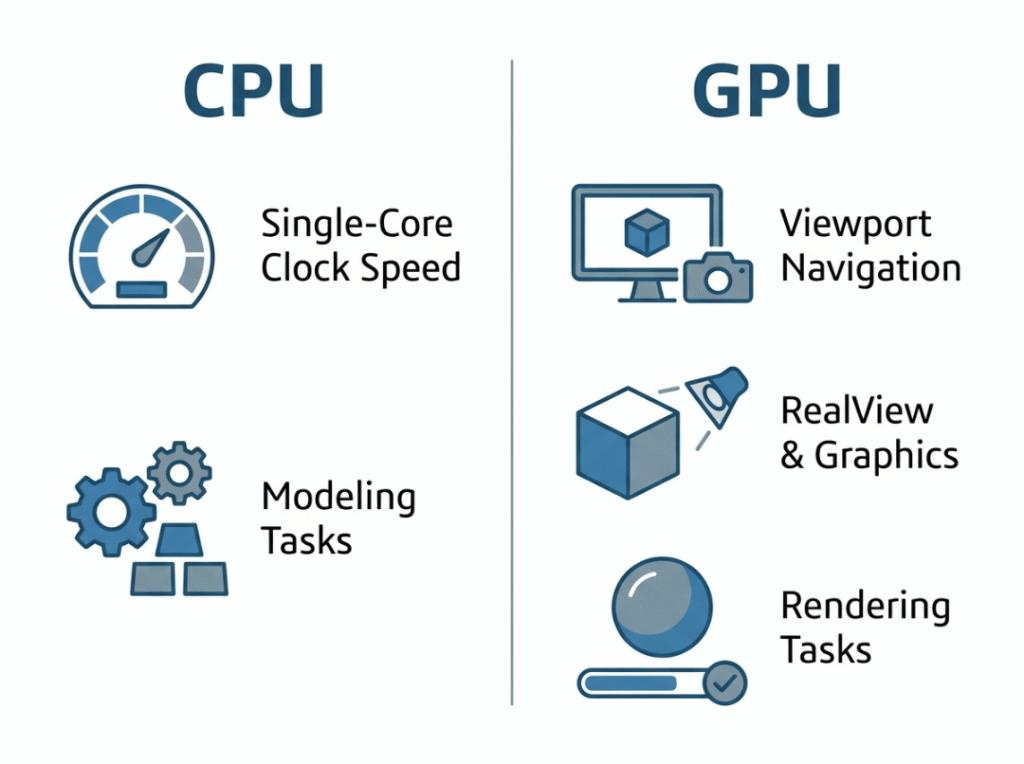

Essential RAM and Processor Needs
When accounting for the RAM and processor Intel requires for SolidWorks, I use 16GB for standard models but 32GB or higher for larger assemblies or simulation tasks. For processors, I shoot for higher clock speeds since core count doesn’t add much for SolidWorks due to its single-threaded nature. For complex designs, Intel Core i7/i9 or AMD Ryzen 7/9 CPUs with 3.5GHz and up work exceptionally well. Finding the right balance between the CPU and RAM capabilities provides smoothing handling of intensive work.
Why Choose Nvidia RTX for Running Solidworks?
Nvidia RTX graphics cards are recommended for running SolidWorks due to their performance, reliability, and certification for CAD applications. The RTX series with newer Turing or Ada Lovelace architecture provides exceptional GPU acceleration for rendering and simulation. Also, SolidWorks was made to work perfectly with Nvidia GPUs, so there are no problems using potent graphics processes in SolidWorks. Features like Real-Time Ray Tracing and AI significantly improve visual fidelity and productivity, which makes Nvidia RTX perfect for professionals who require quality and precision in their designs.
Benefits of Quadro Graphics Performance
Using Nvidia’s sophisticated GPU technologies, I have noted an improvement in the performance of my rendering and simulation workflows. The ability to calculate Real-Time Ray Traced lighting and shadows provides highly accurate results, making it possible to reduce the amount of iterative tuning significantly needed. Additionally, AI-powered features like denoising and upscaling facilitate the post-processing stage, allowing the work to be completed faster without compromise. Whenever the CUDA cores from Nvidia and its support in SolidWorks are combined, accuracy in simulation tasks improves, along with the reliability and efficiency of computation. This combination of hardware power and optimized software integration makes the difference in productivity and output quality so significant that one wonders how they managed before having such powerful tools like Nvidia for professional rendering and simulation.
Comparing RTX with AMD Options
When comparing NVIDIA’s RTX series to AMD’s Radeon graphics cards, three factors are of utmost importance – real-time performance, software support, and cost performance. For example, the NVIDIA RTX series cards like the 4070 Ti and the 3090 outdo the competition in real-time ray tracing regarding the real-time rendering of light and shadow effects because they have RT Cores dedicated to such tasks. Moreover, the addition of Tensor Cores improves the AI-driven processes with DLSS. It dramatically reduces the frame render drop during gaming and frame rendering without much impact on the image quality.
AMD’s graphic options, such as Radeon RX 7900 XTX and RX 6800 XT, are unmatched in competitive rasterization performance and power efficiency. Additionally, AMD’s RDNA 3 architecture is instrumental in improving performance-per-watt ratios, which makes their cards excellent for users concerned with energy expenditure. Compared to Nvidia, AMD still struggles with high-demanding applications of ray tracing performance.
From a software point of view, Nvidia still comes out on top due to better driver optimization and exclusive features like CUDA, which allow heavy applications such as Blender and Adobe programs to be utilized much more efficiently. On the other hand, AMD is still catching up with Nvidia with its development of open-source FidelityFX Super Resolution (FSR) as an alternative to DLSS.
Technical Parameters (Example Models)
|
Specification |
Nvidia RTX 4070 Ti |
AMD Radeon RX 7900 XTX |
|---|---|---|
|
Architecture |
Ada Lovelace |
RDNA 3 |
|
GPU Cores |
7680 CUDA Cores |
6144 Stream Processors |
|
Ray Tracing Units |
60 RT Cores |
84 Ray Accelerators |
|
Memory Size |
12 GB GDDR6X |
24 GB GDDR6 |
|
Memory Bandwidth |
504.2 GB/s |
960 GB/s |
|
Power Consumption (TDP) |
285W |
355W |
Ultimately, the Nvidia RTX cards are perfect for workflows with complex tasks requiring efficient rendering and precision, while AMD cards are better suited for lower budgets while still providing good performance. The best option ultimately depends on the specific needs of the intended applications.
What are the Best Overall RTX Options for Solidworks Users?

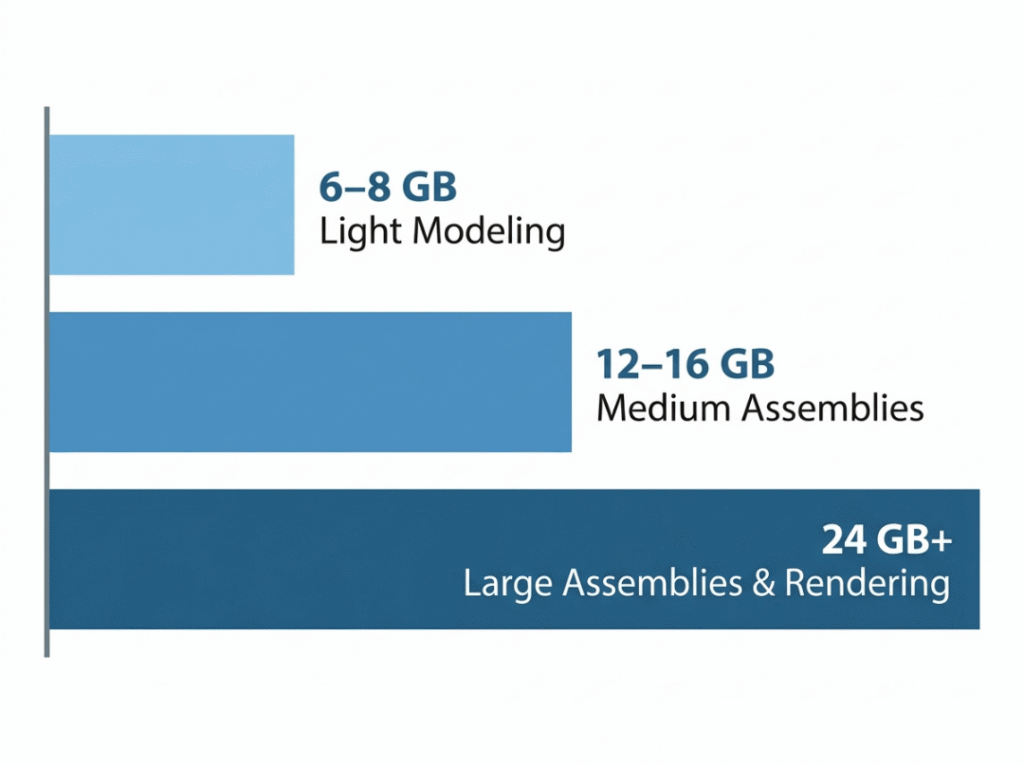

Users looking for an RTX GPU for Solidworks should consider models that effectively balance performance, stability, and compatibility with CAD workloads. As a mid-range option, the NVIDIA RTX A4000 provides 16 GB GDDR6 memory and reliable performance across various professional workflows. The NVIDIA RTX A5000 is ideal for users with more demanding requirements. It provides enhanced power with CUDA core count and rendering capabilities raised alongside 24 GB GDDR6 memory. For users with even more strenuous demands, the NVIDIA RTX A6000 is at the top. Equipped with 48 GB GDDR6 memory and unmatched computational power, the A6000 is ideal for users working with large assemblies and demanding simulations. Each card guarantees its best performance when working with Solidworks, ensuring that drivers and all GPU-accelerated features are fully supported.
Top Nvidia Models for Enhanced Graphics Performance

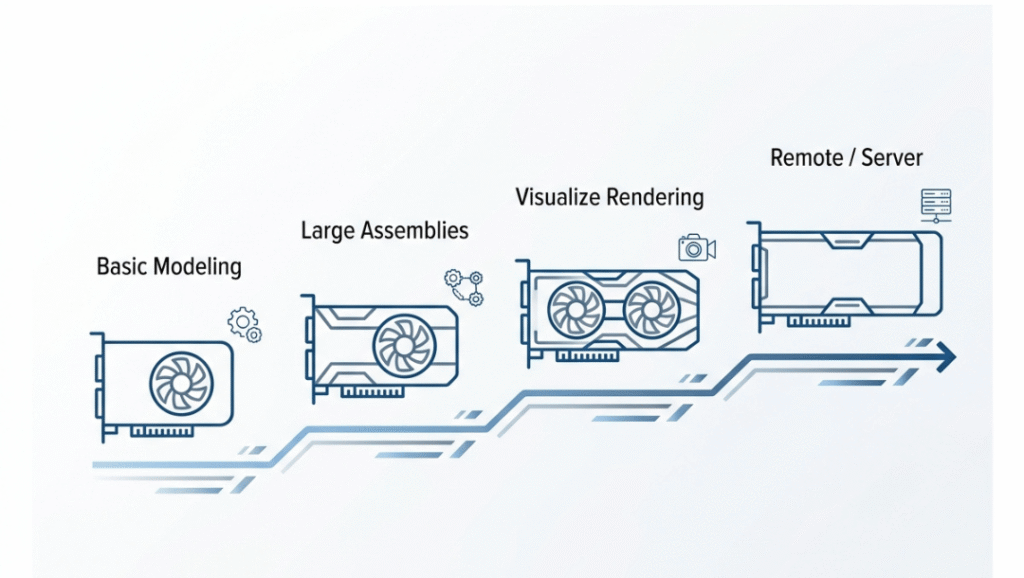

Everything comes down to how you intend to use the graphics card because the leading suggestions highly recommend that an Nvidia graphics card is tailored for use. If, for instance, you are CAD modeling or performing real-time ray tracing, none can compete with the NVIDIA RTX A6000, which has 48 GB of GDDR6 memory and unmatched processing power alongside support for gargantuan workloads. The NVIDIA RTX A5000 is ideal for users who want to strike a balance between power and efficiency, as it provides substantial rendering capability with 24 GB of memory, which is excellent for any 3D undertaking or simulation. If you are planning to use the computer for moderate workloads, a great option would be the NVIDIA RTX A4000, which has 16 GB of GDDR6 memory suitable for lower-range professional tasks while being economical. These models run smoothly where specific software tools or features are complemented by the GPU, with Solidworks, for example.
Evaluating GeForce and Workstation Graphics Cards

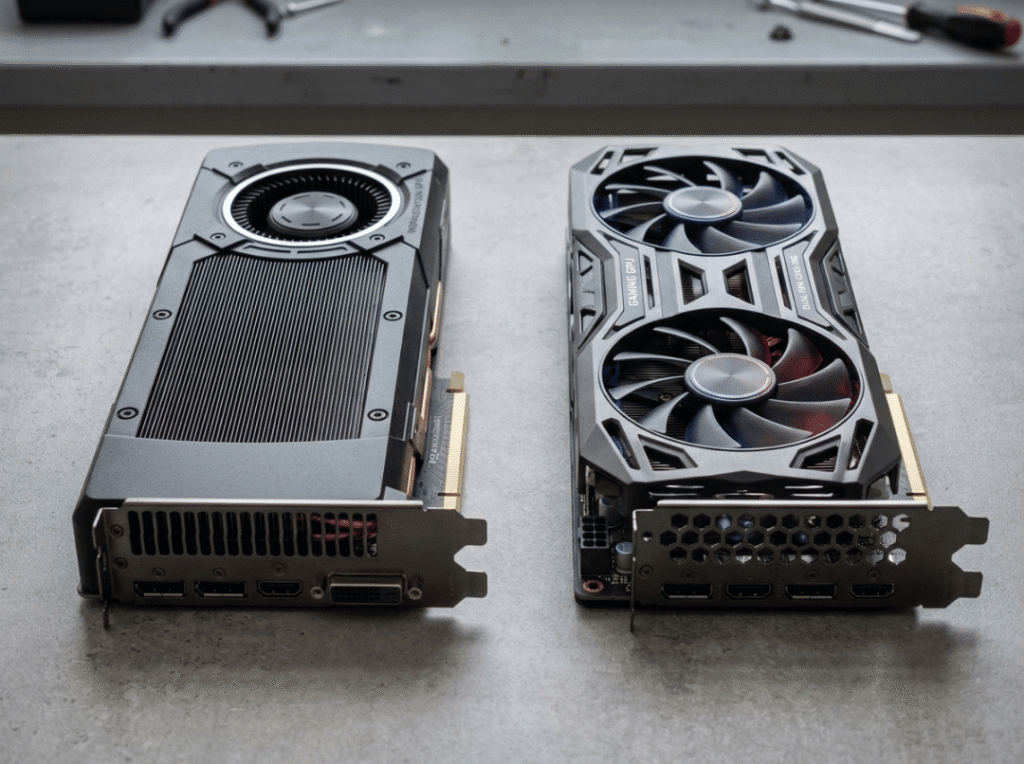

The context drives my decision when choosing between workstation and GeForce GPUs. As previously mentioned, GeForce cards are optimized for gaming and consumer use, allowing for faster clock speeds and increased performance. On the other hand, workstation GPUs, such as the NVIDIA RTX A5000, are built for professional-level applications with features such as excellent stability, more precise calculations, and greater adaptability with CAD tools or rendering engines. GeForce cards can handle lower workloads, but workstation graphics cards are necessary for complex simulations, massive datasets, and GPU-accelerated workflows.
Which Graphics Card Offers the Best Performance?
To determine which graphics card would be the most suitable for you, it is essential to consider the memory performance. The NVIDIA GeForce RTX 4090 is at the apex, dominating the video game market with 4K Gaming and Ray tracing. The Graphics card has 24GB of GDDRX memory, 16,384 CUDA cores, and 2.52 GHZ boost clock speed. The graphics card uses Ada Lovelace architecture and artifacts into NVIDIA rtx A6000, which shatters its competitors for professional workloads. The A6000 has 48 GB of ECC GDDR6 memory, 10,752 CUDA cores, and 84 third-generation RT cores. This makes the A6000 highly suitable for scientific simulations and large-scale 3D rendering. AMD also released a reigning competitor, the Radeon RX7900 XTX. It comes with 24GB GDDR6 memory and 6,144 Stream processors, which capture game-play and stream with unmatched quality while remaining highly affordable. The card one decides to go with heavily relies on the performance adaptability one requires.
How do you optimize Solidworks Workflow with RTX GPUs?
To enhance the efficiency of your SolidWorks workflow when using RTX GPUs, try to use their additional hardware features to the maximum. Start turning on RealView Graphics and Ambient Occlusion to get the most out of the GPU resources by utilizing ray tracing and shading. Ensure that your drivers are up to date by getting the latest NVIDIA Studio Driver, which is built specifically for design purposes. During heavy simulations, utilize the CUDA cores to speed up rendering and achieve quicker visualizations. Also, if possible, NVIDIA’s NVLink can pool the memory of several RTX GPUs, which can be helpful when dealing with large assemblies or datasets. Change SolidWorks performance options to increase GPU acceleration, eliminate CPU throttling, and improve overall efficiency. With these settings, you can work more efficiently on SolidWorks, which, in return, improves your productivity and provides you with the desired results.

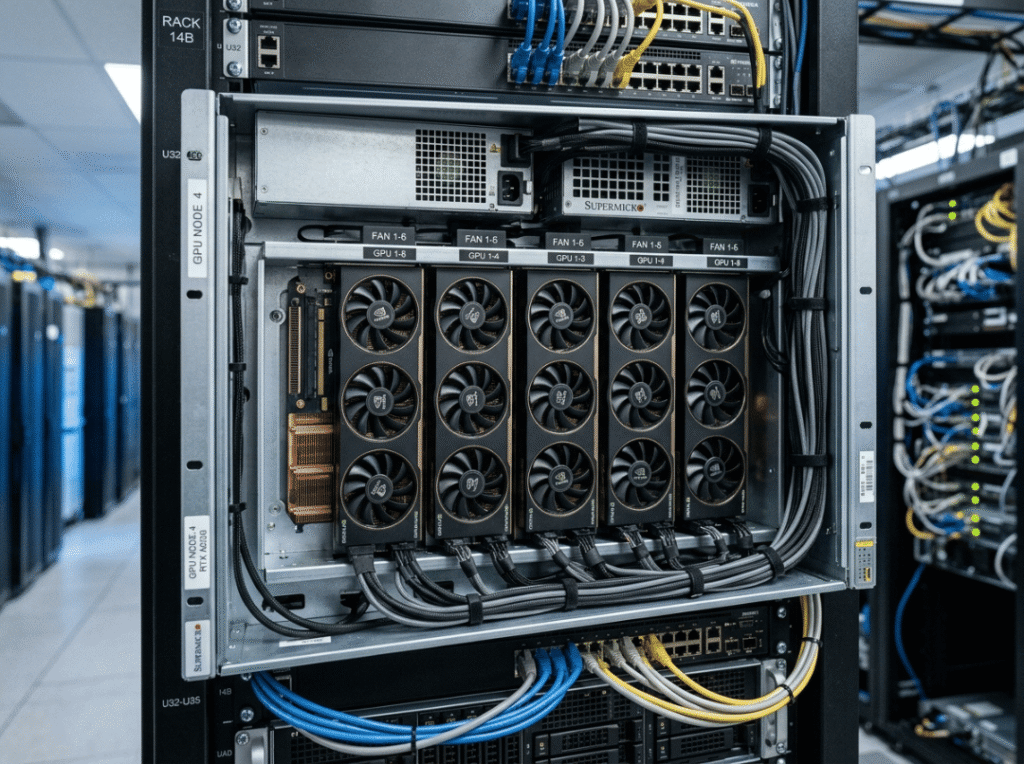

Configuring Your Workstation for Best Performance
To configure your workstation for superior memory and storage performance, consider the following key aspects:
- System Memory (RAM):
-
-
- A minimum of 32GB RAM is recommended for complex assemblies or simulations.
- For large datasets or heavy multitasking, opt for 64GB or higher. To prevent bottlenecks, ensure your RAM speed (e.g., 3200MHz or above) matches your motherboard’s capabilities.
-
- Storage Configuration:
-
-
- Use an NVMe SSD with at least 1TB capacity as the primary drive for the operating system and frequently used applications. NVMe SSDs offer superior read/write speeds over SATA SSDs, minimizing loading times.
- Implement a secondary drive, SSD or HDD, for archiving large projects or less-accessed files.
- Configure your SSD with a TRIM-enabled file system to maintain data integrity and prolong drive lifespan.
-
- Virtual Memory Settings:
-
-
- For optimal performance, set the system paging file size manually to 1.5-2 times the installed RAM, particularly if physical memory runs out in resource-heavy tasks.
-
These recommendations balance cost, performance, and scalability, ensuring your workstation excels in both design and simulation tasks.
Integrating Solidworks Visualize for Better Rendering
Incorporating Solidworks Visualize into a workflow offers an elevation in rendering by allowing photographically accurate imagery and animations. While doing so, I focus on taking advantage of GPU acceleration for my workstation’s GPU, which minimizes the time it takes to render. In addition, I clean, simplify the geometry, and reduce models that do not need detailed geometry to ensure my models are optimized. I also take care of the base geometry and standard appearance features for transitions in Solidworks so that it is simple, fast, and consistent in updates when switching to Visualize. Lastly, I enhanced the placement of lights and set up the camera in parallel projection mode in Visualize, according to standard design requirements, to ensure that he gets the most accurate output and grade visuals.
Using Nvidia RTX for RealView and Enhanced Graphics Performance
Using Nvidia RTX graphics cards significantly boosts performance in RealView and enhances Solidworks’ graphics modes. I can do hardware-based ray tracing with RTX-enabled GPUs, improving visuals and rendering. RealView Graphics, designed for RTX cards, displays materials and environments in a new level of realism right within Solidworks. RTX cards also improve frame rates and stability, particularly with large assemblies or complex designs. In addition, by using Nvidia’s dedicated drivers for Solidworks, I maximize compatibility and efficiency for a seamless and responsive design experience.
What are Solidwork’s Top Posts on Graphics Card Choices?
The best posts on Solidworks always state that choosing a certified GPU from Solidworks is crucial. It affects the software’s performance and compatibility metrics, such as Nvidia Quadro or AMD Radeon Pro series. These posts elaborate on how workstation cards perform better than consumer cards during RealView, PhotoView 360, and large assemblies. It is also noted that the GPUs with greater VRAM perform better for managing, rendering, and other complex model tasks. Lastly, it is common for these posts to recommend users update their drivers frequently and avoid tinkering with the Solidworks official hardware certification list.
Insights from Solidworks Users on Graphics Cards
My analysis and study show that selecting a graphics card for Solidworks centers on performance, reliability, and certification. Solidworks practitioners often advise using certified workstation cards, Nvidia Quadro or AMD Radeon Pro, because they’re tailored for CAD work and are supported by Solidworks. While cheaper, consumer GPUs are less precise with the RealView Graphics feature attributes or handling large assemblies. Secondly, choosing a card for at least 4GB of VRAM requires effortlessly dealing with intricate models and rendering workflows. Ultimately, regular updating of graphics drivers and constant checking of Solidworks’ hardware certification lists guarantees optimal performance and render efficiency. These considerations would help achieve a seamless experience while working with Solidworks.
Expert Opinions on RTX and Quadro Cards
Expert professionals highlight key differentiating factors around RTX and Quadro cards concerning performance in CAD environments. Quadro cards like the NVIDIA RTX A2000 and A4000 models are designed for professional workloads and possess features such as ECC (Error-Correcting Code) memory, further ensuring reliability for intricate operations. These cards are Certified by Solidworks, allowing advanced functions such as RealView Graphics and better handling of larger models. These Quadro cards also tend to have higher precision in floating-point operations, which are essential for CAD models.
On the other hand, consumer NVIDIA GeForce RTX non-Quadro GPUs (e.g., RTX 3060, RTX 3070, and RTX 4090) do not have official certification, but they are instrumental when a lower price is needed while still providing high performance. For instance, the RTX 4090 with 24GB GDDR6X VRAM will excel in rendering GPU-intensive processes. It can outdo Quadro cards in rendering straightforward tasks, but users report experiencing instability while using Solidworks, which stems from the unsupported drivers.
From a technical perspective:
- Quadro RTX A4000:
-
- VRAM: 16GB GDDR6 ECC
- Memory Bandwidth: 448 GB/s
- Features optimized drivers for Solidworks-certified stability.
- GeForce RTX 4090:
-
- VRAM: 24GB GDDR6X
- Memory Bandwidth: 1018 GB/s
- Superior for rendering but lacks professional certification.
Experts generally recommend Quadro cards for mission-critical CAD tasks due to their combination of reliability, certification, and optimization. In contrast, GeForce RTX cards may be suitable for budget-conscious users primarily focused on rendering capabilities.
Future Trends in Graphics Cards for Solidworks
Synthetic benchmarks of Solidworks suggest that the evolution of its graphics cards will depend heavily on overall processing power and software optimizations. We should expect a stronger hybrid CPU/GPU push that utilizes high core counts within efficient power envelopes. The trend towards AI accelerated rendering and simulation has begun, and it could be essential for workflow efficiency improvements. Also, cloud solutions are receiving more attention, allowing users to work together remotely while taking advantage of high-performance GPUs in powerful centralized data centers. With Solidworks increasing support for multi-threaded operations, future graphics cards will likely provide better multitasking capabilities for CAD applications, even further altering the definition of the requirements.
References
- NVIDIA’s Quadro Graphics Cards for SOLIDWORKS – The official NVIDIA page details workstation acceleration with Quadro RTX cards.
- Best Graphics Cards for SolidWorks 2024 – Daily Tech Journal – A detailed article on top-performing GPUs for Solidworks.
- NVIDIA GPUs for SOLIDWORKS – Javelin Technologies – Insights into NVIDIA’s professional workstation GPUs for Solidworks.
Frequently Asked Questions (FAQ)
Q: What are the recommended graphics cards for using Solidworks on a server?
A: Recommended graphics cards for Solidworks include professional workstation cards like the NVIDIA RTX A4000, A5000, and A6000. These are designed to handle the demanding tasks within Solidworks and provide significant performance improvements over gaming cards.
Q: Is a gaming GPU suitable for Solidworks?
A: While gaming GPUs like the NVIDIA GeForce 3080 and 3090 can perform well, professional workstation cards are highly recommended for Solidworks due to their optimized drivers and support for CAD-specific tasks.
Q: How important is GPU selection for Solidworks performance?
A: GPU selection is crucial as it can significantly impact rendering, assembly, and simulation tasks within Solidworks. A robust workstation card will give you the best experience and efficiency.
Q: Should I prioritize high clock speeds or a higher core count in a GPU for Solidworks?
A: Both are important, but higher clock speeds are often more beneficial for tasks like real-time rendering and smooth modeling operations for Solidworks.
Q: How much RAM do I need for Solidworks on a server?
A: For optimal performance, having at least 32GB of RAM is highly recommended, especially when working with complex assemblies and large models.
Q: Can overclocking a GPU benefit Solidwork’s performance?
A: Overclocking can provide a performance boost, but it’s essential to ensure stability and check whether your specific GPU supports it without voiding warranties or affecting reliability.
Q: Is upgrading my SSD for Solidworks on a server is necessary?
A: Upgrading to an SSD from a traditional hard drive can improve load times and overall system responsiveness, which benefits large Solidworks projects.
Q: Does using a mobile workstation affect Solidwork’s performance compared to a desktop?
A: Mobile workstations are designed to perform CAD tasks on the go, but due to thermal and power constraints, they may not match the performance of a dedicated desktop workstation.
Q: Which CPU is ideal for a Solidworks server setup?
A: A CPU with a higher clock speed and a good balance of core count, like the Intel Core i7 or i9 series, is ideal for Solidworks. It complements the GPU for the best performance.
Q: Are there specific monitor recommendations for Solidworks?
A: A 4K monitor can provide the clarity and resolution needed for detailed work in Solidworks, but ensure your GPU can support the resolution and refresh rate for optimal performance.
