Regarding hardware consideration, one major point about setting up a server is the case size that needs to be selected. Four terms are associated with the height of the server case: 1U, 2U, 3U, and 4U, with the ‘U’ standing for a unit measurement of 1.75 inches. These sizes are only supportable for rack-mounted or power-dense servers, which helps ease expansion and variable configurations based on the end user’s wishes. Understanding each size and how it differs from the others and pinpointing the benefits is crucial in making a choice that best suits the severe case of every organizational goal and fits within the able framework.
What is a Server Case, and Why is it Important?
Understanding the Purpose of a Server Case
A server case or rackmount chassis protects the hardware inside your server. Typically, the server case’s function is to provide storage solutions for the core components of the server, like the motherboard, processors, RAM, storage drives, and power supply. On top of that, it also provides optimal airflow and cooling solutions, which prevent the hardware from overheating during high-workload tasks. A good server case can adequately provide housing protection to the server, ensuring minimal interference and reduction in physical shocks, which leads to the server’s ability to operate reliably for an extended period.
How Does a Server Case Affect Performance?
The individual qualities of server cases affect how well the server performs in practice. Air conditioning is crucial to server hardware functionality; airflow chambers and mountings for additional cooling devices, such as fans or water coolers, help to ensure that the operating temperature is kept within acceptable ranges. Ineffective cooling results in thermal throttling, thus reducing the performance and lifespan of the internal parts. In addition, the server case’s format – 1U, 2U, and 3U – dictates what components will fit into it. With a bigger case, one has more expandability options, while a more compact case reduces these but, in turn, will be designed for mobile environments. Good ultra-thin server cases also provide isolation from vibrations and better cable management, which in turn increases performance and helps avoid issues.
Key Features of a Quality Server Case
- Durability
Built with robust materials like steel or aluminum to ensure long-lasting performance and protection for internal components. - Cooling Efficiency
Includes proper ventilation, multiple fan mounting options, and support for liquid cooling systems to maintain optimal temperatures. - Expandability
It offers multiple bays and slots, allowing you to add drives, GPUs, or other hardware upgrades as your needs grow. - Cable Management
Provides organized cable routing systems with channels and tie points to keep the interior tidy and improve airflow. - Noise Reduction
Equipped with noise-dampening panels, vibration-isolating mounts, and quiet fan options for a quieter operation. - Security Features
It comes with lockable panels or access points to prevent unauthorized tampering or theft of internal components. - Ease of Maintenance
Features tool-less designs for easy hardware access, removable filters, and modular components for straightforward upkeep. - Rack Compatibility
Designed to fit standard server racks with secure mounting options or flexibility for standalone use. - Aesthetic Design
While function is key, a sleek and professional appearance can be a bonus, especially for visible setups.
By carefully selecting a server case with these features, businesses and IT professionals can enhance their server infrastructure’s reliability, security, and efficiency, effectively meeting current and future demands.
What are the Differences Between 1U, 2U, 3U, and 4U Server Cases?
Rack-mounted equipment is measured in Rack units, or RUs, which are sometimes simply labeled as U. Servers, and their cases intended to be placed inside an equipment rack are mainly measured in RUs. For instance, a single rack equals 1.75 inches or 44.45 mm, meaning a 2U is considered 3.5 inches tall, a 3U is 5.25 inches tall, and a 4U is 7 inches tall.

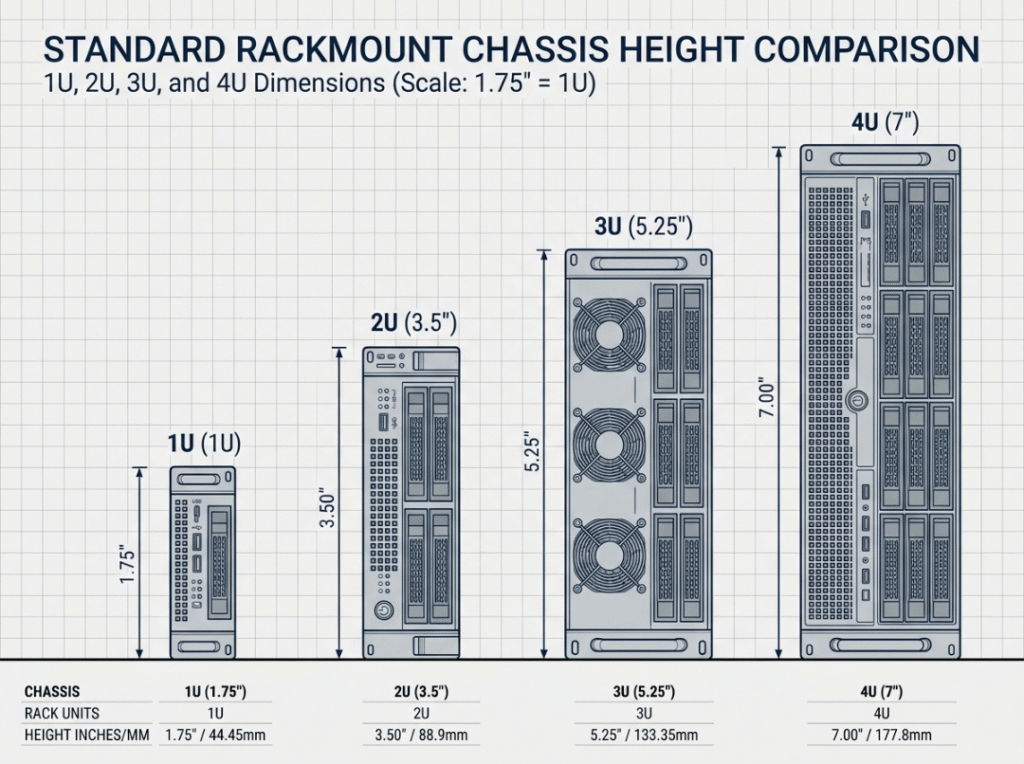

Size and Height Comparison of Server Cases
- 1U Server Case – This is the smallest, 1.75 inches in height, making it rack space efficient. The cases are suitable for places where maximizing space is the priority.
- 2U Server Case—These cases are about 3.5 inches tall and have more internal space. They give users extra cooling and room for dual storage or additional components, such as a dual CPU.
- 3U Server Case—3U cases are 5.25 inches tall. These slim server cases provide more space and are compatible with servers with advanced customization or cooling cells attached.
- 4U Server Case—This is 7 inches tall, making it the biggest in the comparison. It accommodates high-performance components, effective cooling systems, and specific hardware.
When Should You Choose 1U vs 2U vs 3U vs 4U?
1U server cases are preferred in business corporate applications that need to maximize space economy and rack density. These cases are ideal for compact physical spaces where many Servers must be installed, but fitting the internal components tightly may cause overheating and high noise levels.
2U Server Cases are performance-enhancing devices that utilize a little more rack space but not exceedingly. They are useful for more high-density setups requiring more hardware or efficient cooling.
When specialized hardware is employed for a server setup that needs more cooling and greater airflow, 3U Server Cases are needed.
4U Server Cases are best suited for applications requiring high performance, such as those that are data intensive and have large storage arrays or other systems that are custom-made to have specific requirements. They have the greatest design freedom regarding cooling solutions and flexibility for internal parts.
The final decision on which case to choose from the 1U to 4U range depends on which installing site is available, how much cooling is needed, and even how the hardware is structured and what performance is required. To serve their operational objectives, businesses should consider their present and future needs, which correspond to the server case selected.
How to Choose the Right Chassis for Your Server?
Factors to Consider When Selecting a Server Chassis
Several important considerations should be made before a server chassis is bought to ensure that performance will be optimal and compatibility will be guaranteed. First, determine the cooling systems you will use and the motherboard, processors, GPUs, and storage drives. The amount of space consumed by the components to be used in the case of the chassis will need to be looked at, and that will govern the size and make of the chassis, along with allowing for proper ventilation and fitting (whether it be ATX or microATX or E-ATX). Apart from that, look at each component’s power requirements and ensure that an appropriate PSU is fitted for the server.
Another key consideration is the cooling requirements of the chassis. Advanced Ventilation may be required for high-performance servers; sometimes, even a liquid cooling option would suffice. The storage capacity also comes into play, and finding a suitable chassis that allows for a good mix of SSD and HDD with the future metric in mind.
Compatibility Aspects of Several Server Components To avoid bottlenecks and difficulties in installation, ensure that all the internals fit into the server chassis. It is also necessary to ensure that the chosen chassis of the server can accommodate the dimensions and specifications of the CPU cooler and GPU and RAM clearance requirements alongside the GPU selected. A chassis sustains the additional heat generated and power supply requirements if the server uses multiple GPUs. Chassis supports should be checked for I/O ports and confirm that your system’s required types of connectivity are supported. Furthermore, isi33 further considers the noise level produced by the power supply server. To prevent overheating, compact chassis with insufficient cooling may produce higher fan noise; therefore, space and thermally balanced design must be on par. This also provides the correct deployment conditions for the server’s intended placement.
Desktop Vs. Rackmount Cases: The Selected Commentaries
The fundamental detail regarding your needs is the Barrack or Desktop Server Case, which ultimately depends on how you intend to use the machine and the environment it is needed for. Businesses with many servers should invest in a Barrack Server Case, as these can accommodate standardized barracks, making it easy to manage cables. Such cases are also required when data center cooling systems need higher-density installations and better airflow.
However, a desktop case would suffice if one is required for a desk setup or when the server must function on an office desk. Barrack cases do not allow for much flexibility regarding where they can be placed, but they perform better compactly and allow for improved aeration and scaling. Desktops, on the other hand, allow for more accessible space for functioning and upkeep.
Ultimately, the selection should be based on the available space, the required performance, and future expectations. This enables an efficient evaluation of all interrelated considerations and ensures that the selected server chassis meets and exceeds the system’s intended requirements.
What are the Benefits of Rackmount Server Cases?
Space Efficiency in Data Centers
Data centers look quite different from conventional offices. First, they often come complete with a rather large number of rack server enclosures. The config design helps reduce the footprint of traditional desktop or tower server architectures by stacking multiple servers or switches within a single unit. This enables data center managers to maximize the number of servers while maintaining cooling, cabling, and organization in vertical rack systems. Such optimized resource use lowers operational costs and bolsters growth potential.
Improved Cooling and Airflow Management
Among the numerous advantages of rackmount units, enhanced cooling remains a major advantage. These cases are designed to support large vents and multiple fans to avoid overheating inside highly populated server hubs. Many rackmount cases, as a case in point, also support fan modules and dedicated liquid cooling hardware. Good thermal management will guarantee that server hardware is operating correctly and risks of failure hardware are reduced, along with increased lifecycles of essential components, giving a valid aim for rackmount cases in high-end applications.
Enhanced Security Features in Rackmount Cases
Data is protected by including a server rack case as a valuable uniform piece of hardware. Lockable enclosures, rails, and panels serve as access control to the server gear while minimizing the chance of tampering. Server rack systems can also link to video monitors and sensors to access suspicious activity alerts. This mix of measures is necessary for industries focusing on data integrity and compliance, making IT managers and other stakeholders feel at ease.
How Do I Determine the Right Form Factor for My Needs?
Understanding Your Server Requirements
While formulating the ideal server type, the requirements of the server should assimilate high priority. Start contemplating the server’s basic functions along with the applications to be run, the database it would be hosting, and the website it stores. Considerations should also be made regarding the number of expected users, workload, and type of information that will be processed. This evaluation will ensure that you pick out the server that is adequate for your needs in terms of performance, cost, and energy, saving the need for excessive resource allocation.
Weighing Up and Estimating Future Scalability and Upgrades To Be Made
You should bear in mind the scalability of your server and its potential for future upgrades; this is a crucial factor in your decision-making. Modifications should be avoided so the servers can handle all the business requisites. As the growth of the business fuels expansion, rack mount servers prove to be useful since they make room for additional storage, processors, and memory. Tower servers may be sufficient for small businesses with low growth expectations. In contrast, blade servers provide tight configurations for businesses with high practicable scalability requirements. Keep the bigger picture in mind so that the effects of technological advancement and the demands of the business do not hinder the system’s compatibility.
Analyzing Power Needs and Power Management
Regarding the appropriate form factor, power supply is also a crucial consideration that must be accounted for. Blade and rackmount servers draw more power than tower servers because of their increased computing capacity. Ensure that your infrastructure does not get overwhelmed by the power needs of the server you select, and try to buy backup power supplies to reduce the chance of outages. Besides, power management aids can reduce power consumption, cut energy waste, and reduce running costs in the long run. Ample allocation in this domain guarantees dependable delivery while also being mindful of consumption efficiency.
What Are the Popular Brands and Models for Server Cases?
A Review of Top 1U and 2U Server Cases
Efficient and compact working areas often require 1U and 2U server cases. Supermicro CSE-512F-350B is perhaps among the most-rated 1U server cases due to its sturdy construction and exceptional airflow, which makes it suitable for small data storage work rooms or individual IT tasks. Rosewill’s RSV-R4000, on the other hand, is well-suited for expansion users or businesses because it offers a variety of storage bays and the ability to add extra cooling. Once again, there is even a focus on optimizing space while adding on every load of the current server setup, which is the standard requirement of all modern server setups.
Best 3U and 4U Server Cases on the Market
In 3U server cases, we expect to find the iStarUSA D-3100HN, and it doesn’t disappoint; it has tool-less features and great cooling efforts, more than adequate for businesses that need moderate expansion. For larger setups, 4U cases like the Chenbro RM42300-F provide wider motherboard space, even more GPUs, and better cable management. Suitable for businesses that require enormous storage and processing capabilities. The needs of these enterprise-scale operations are better met by these cases, with the range of customization and robust structure they can offer.
Comparing Specifications of Leading Brands
Constructing an ideal server involves selecting the correct components from various brands. Material, cooling features, and build compatibility are essential when targeting a specific brand. Supermicro, for example, specializes in steel cases with remarkable airflow and motherboards suitable for enterprise use. Similarly, a more professional grade brand, Rosewill, focuses on cost while not losing some key features, e.g., the hot-swappable drive bays. Enclosures like those of iStarUSA have good support for quick mounting options, while branding such as Chenbro offers more flexibility and stability for more sophisticated setups. Naturally, each brand specializes in something different, so understanding what workload your server will perform and how much you need to scale will greatly ease your decision-making process.
Frequently Asked Questions
Q: What is a 1U server, and what are its distinguishing parameters from the other types?
A: A 1U server belongs to a category of rack-mounted servers with a height of 1.75 inches; it is generally used with a 19-inch server rack. Differentiating between 1U servers from other sizes, Configurations such as 2U, 3U, and 4U, due to their greater dimensions, can house greater components such as increased CPUs, GPUs, and hard drives.
Q: How should I select between a 1U or a 2U server?
A: The appropriate server depends upon the client’s requirements as mentioned above; while a 1U server is best suited for limited space availability, a 2U is appropriate due to its accommodating factors such as Increased PSUs, Enhanced heat management, additional hard drives, etc. When optimized within a 2U server, servers feel restricted, but in high-performance situations, they do perform better.
Q: What are the advantages of replacing a standard tower server with a rack server?
A: The transitions of replacing a standard tower server with a rack server tend to exponentially improve space management, expansion, and airflow management when proper ventilation is ensured. Multiple servers are housed within a server rack, which enables them to be placed securely while enabling them to be stacked and allowing sufficient airflow to reach all placed devices.
Q: What types of hard drives can be a part of a 1U server?
A: Depending on the server chassis and bay configuration, a 1U server can fit a 3.5” HDD or 2.5” SSD. A 1U server chassis allows for as many drives as possible to be attached, meaning better performance and more storage will be available.
Q: Can I install more than one CPU in a 1U server?
A: A standard 1U server usually only accommodates one CPU due to space limitations. A 2U case would be preferable for servers with multiple processors, as it incorporates better ventilation and space for a high-end CPU, enhancing performance.
Q: How should I ensure that my 1U server cools properly?
A: Getting the right 1U server case is key to maximizing airflow and ensuring that fans and exhausts can provide good cooling. High-grade components that run cooler and ensure the server rack is not overly crowded work wonders.
Q: A 1U server needs a maximum number of PCI slots. What could that number be?
A: The limits of PCI slots on a 1U server chassis depend on the model and manufacturer; however, more often than not, one to four PCIe slots are incorporated inside the server. However, one would have to sift through the specifications per the electrical design integration to comprehend available slots, compatibility, and pole configurations of the unit’s wires.
Q: Is the market flooded with specific 1U server manufacturers with a reputable reputation?
A: Numerous manufacturers of high-quality 1U servers, such as Dell and HP, are available. These companies offer many configurations, meeting various needs, such as performance and price, and ensuring a perfect fit.
Q: Which number do we go with when asked for the standard depth of a 1U rack-mounted server?
A: In most cases, the server depth increases from 24 to 30 inches, but again, this depends heavily on the model requirements. Thankfully, IT professionals think ahead, so they consider the depth of the rack server when looking for cooler 1U servers.
